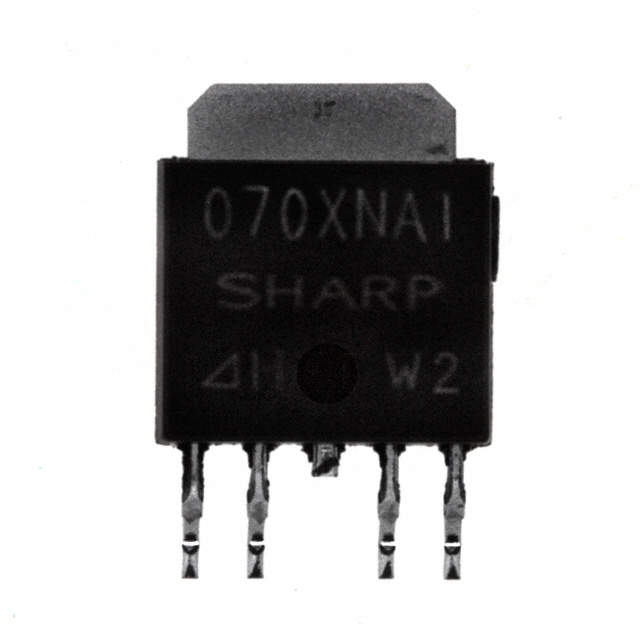

PQ070XNA1ZPH Sharp Microelectronics PQ070XNA1ZPH Real Image1 PQ070XNA1ZPH Real Image2 PQ070XNA1ZPH Real Image3
Same model may have multiple batches, images only for reference.
PQ070XNA1ZPH Sharp Microelectronics PQ070XNA1ZPH Real Image1 PQ070XNA1ZPH Real Image2 PQ070XNA1ZPH Real Image3
PQ070XNA1ZPH Sharp Microelectronics PQ070XNA1ZPH Real Image1 PQ070XNA1ZPH Real Image2 PQ070XNA1ZPH Real Image3
Same model may have multiple batches, images only for reference.

PQ070XNA1ZPH

Part No PQ070XNA1ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1A SC63
Datasheet
PQ070XNA1ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 1.5V
Maximum Output Voltage 7V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 2A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Adjustable
Output Voltage 1.5 V to 7 V
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 122150-PQ070XNA1ZPH
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PQ070XNA1ZPH CAD Model

Description

The PQ070XNA1ZPH is an Integrated Circuit (IC) from Sharp Microelectronics that falls under the category of Positive Adjustable Regulators.

  • Packaging: reel - TR
  • Mounting Technology: SMD (SMT)
  • Regulator Topology: Positive Adjustable
  • Number of Regulators: 1
  • Output Type: adjustable
  • Control Feature: enable
  • Output Current: 2A
  • Output Voltage: 1.5 V to 7 V
  • Temperature Range: -40°C to 85°C
  • Case / Package: SC-63
  • Maximum Input Voltage: 10V
  • Nominal Output Voltage (min/fixed): 1.5V
  • Dropout Voltage-Max: 0.5V @ 500mA
  • Operating Supply Current: 2mA
  • PSRR: 60dB (120Hz)
  • Maximum Output Voltage: 7V
  • Protection Features: over current and over temperature
  • Supply and Demand Status: sufficient
