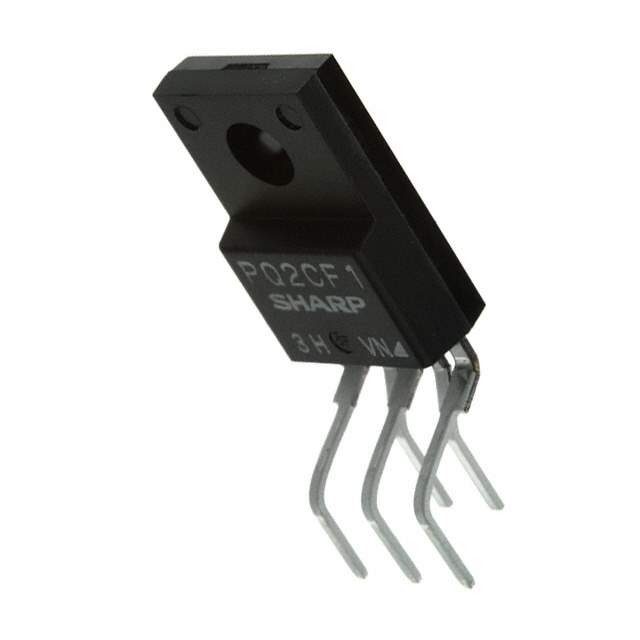

PQ2CF1 Real Image
Same model may have multiple batches, images only for reference.

PQ2CF1

Part No PQ2CF1
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BST FLYBCK ADJ 2.5A TO220
Datasheet
PQ2CF1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Purpose Step-Up, Step-Up/Step-Down
Topology Boost, Flyback
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 3.5V
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 4.5V
Maximum Output Voltage 35V (Switch)
Output Current 2.5A (Switch)
Frequency - Switching 50kHz
Synchronous Rectifier No
Temperature Range - Operating -20°C to 80°C (TA)
Mounting Through Hole
Case / Package TO-220
Win Source Part Number 139720-PQ2CF1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PQ2CF1 CAD Model

Description

The PQ2CF1 is an obsolete (EOL) step-up/step-down voltage regulator manufactured by Sharp Microelectronics.

  • Supply and Demand Status: The supply and demand status is currently limited.
  • Maximum Input Voltage: This regulator has a maximum input voltage of 10V.
  • Nominal Output Voltage: A nominal output voltage of 4.5V.
  • Package: Comes in a TO-220 package.
  • Mounting: Mounted using through-hole technology.
  • Maximum Output Voltage: With a maximum output voltage of 35V.
  • Output Current: An output current of 2.5A (switch).
  • Operating Temperature: Operates at a temperature range of -20°C to 80°C (TA).
  • Topology: Has a boost/flyback topology.
  • Switching Frequency: A switching frequency of 50kHz.
