Same model may have multiple batches, images only for reference.

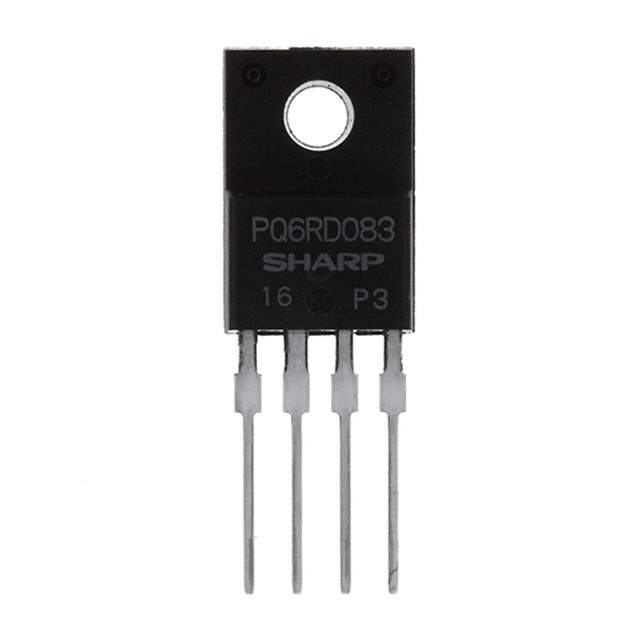

PQ6RD083 Real Image
Same model may have multiple batches, images only for reference.

PQ6RD083

Part No PQ6RD083
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 6.3V 0.8A TO220-4
Datasheet
PQ6RD083 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 6.3V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 800mA
Operating Supply Current 10mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 6.3V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 026854-PQ6RD083
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ6RD083 CAD Model

Description

The Sharp Microelectronics PQ6RD083 is a positive fixed voltage regulator that offers excellent performance and reliability.

  • Manufacturer: Sharp Microelectronics
  • Type: Positive Fixed Voltage Regulator
  • Dropout Voltage: 0.5V @ 500mA
  • Enable Control: Yes
  • Protection: Overcurrent and overtemperature protection
  • Package: TO-220-4
  • Mounting: Through-hole
