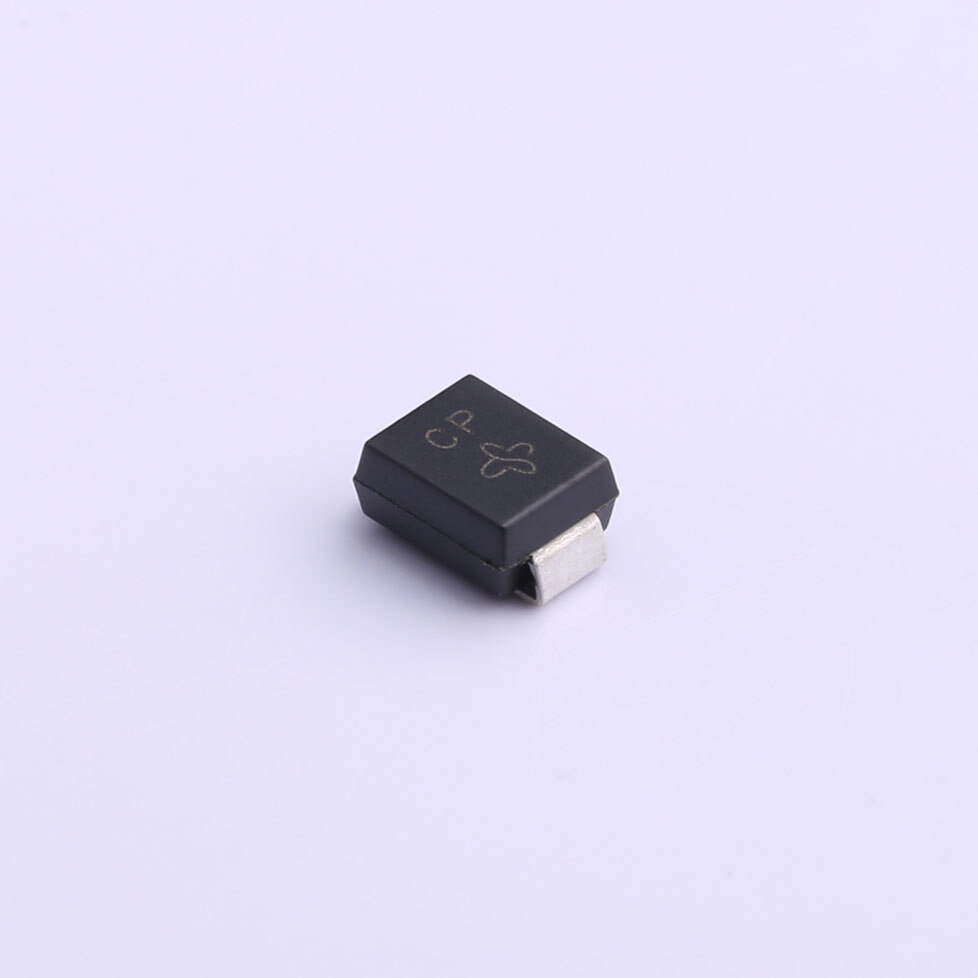

Same model may have multiple batches, images only for reference.

SMBJ36CA

Name: SMBJ36CA
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1329937
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMBJ36CA
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	TVS - Diodes
Description	58.1V 36V 40V 10.3A SMB(DO-214AA)
Datasheet	SMBJ36CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1329937-SMBJ36CA
Package	Strip
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	36V
Voltage - Breakdown (Min)	40V
Voltage - Clamping (Max) @ Ipp	58.1V
Current - Peak Pulse (10/1000µs)	10.33A
Power - Peak Pulse	600W
Applications	General Purpose
Operating Temperature	-55°C ~ 150°C
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AA (SMB)
Package	Cut Tape (CT)
Current - Peak Pulse (10/1000µs)	10.3A
Power Line Protection	No
Operating Temperature	-55°C ~ 150°C (TJ)
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
Package	Tape & Reel (TR)
Current - Peak Pulse (10/1000µs)	10.4A
Applications	Telecom
Grade	Automotive
Qualification	AEC-Q101
Series	*
Package	Tape & Reel (TR);Cut Tape (CT)
Operating Temperature	-55°C ~ 175°C (TJ)
Bidirectional Channels	2
Power Line Protection	Yes
Supplier Device Package	DO-214AA (SMBJ)
Ultra Librarian 3D Model	Ultra Librarian SMBJ36CA CAD Model
