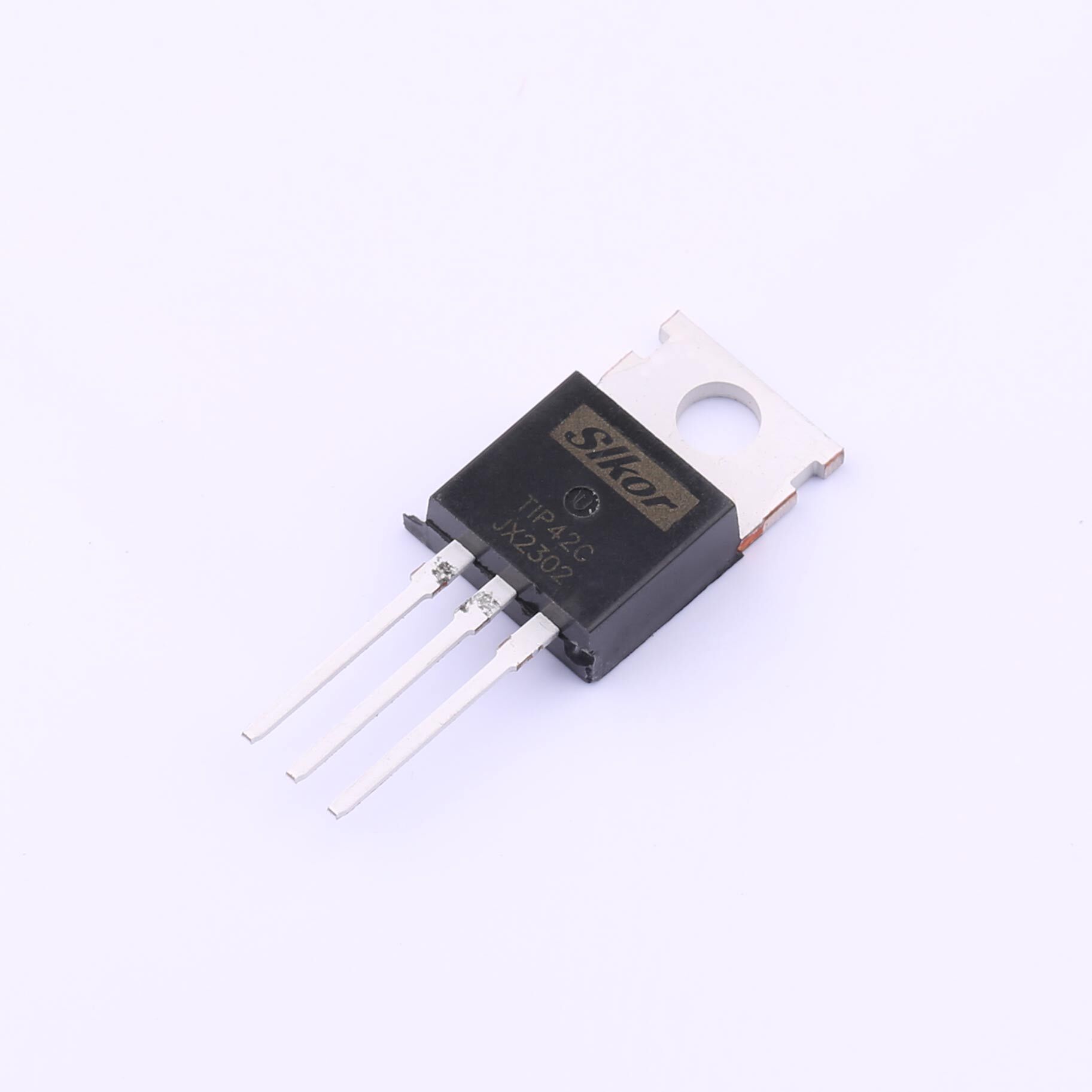

Same model may have multiple batches, images only for reference.
TIP42C ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TIP42C

Part No TIP42C
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Transistors (BJT) - Single
Description 100V 2W 6A PNP TO-220
Datasheet
TIP42C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329768-TIP42C
Package Tube
Product Status Obsolete
Transistor Type PNP
Current - Collector (Ic) (Max) 6A
Voltage - Collector Emitter Breakdown (Max) 100V
Vce Saturation (Max) @ Ib, Ic 1.5V @ 600mA, 6A
Current - Collector Cutoff (Max) 700µA
DC Current Gain (hFE) (Min) @ Ic, Vce 15 @ 3A, 4V
Power - Max 2W
Frequency - Transition 3MHz
Operating Temperature 150°C (TJ)
Grade -
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220-3
Product Status Active
Current - Collector Cutoff (Max) 400 µA
DC Current Gain (hFE) (Min) @ Ic, Vce 40 @ 1A, 5V
Power - Max 65W
Supplier Device Package TO-220
Package Bulk
Ultra Librarian 3D Model Ultra Librarian TIP42C CAD Model
