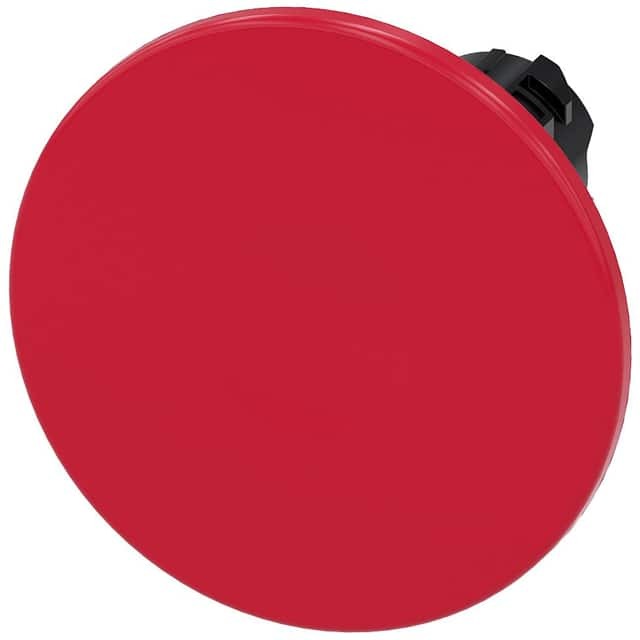

3SU10001CA200AA0 Siemens
Same model may have multiple batches, images only for reference.

3SU10001CA200AA0

Part No 3SU10001CA200AA0
Manufacturer Siemens
Catalog Configurable Switch Components - Body
Description PUSHBUTTON, PUSH PULL RED, MH CA / Configurable Switch Body Pushbutton, Mushroom Non-Illuminated
Datasheet
3SU10001CA200AA0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Configurable Switch Components - Body
Mfr Siemens
Series 3SU1
Package Box
Product Status Active
Requires Contact Block(s)
Type Maintained
Illumination Non-Illuminated
Actuator Type Pushbutton, Mushroom
(Select First, Then Apply Filters) Compatible Series Siemens, 22mm
Panel Cutout Dimensions 22.3mm (Round)
Base Product Number 3SU1000
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1051032-3SU10001CA200AA0
Ultra Librarian 3D Model Ultra Librarian 3SU10001CA200AA0 CAD Model

Description

The 3SU1 series maintained switch component with the Win Source Part Number 1051032-3SU10001CA200AA0 is a configurable switch body designed for various electronic applications by Siemens.

  • Actuator Type: pushbutton, mushroom
  • Illumination: non-illuminated
  • Package: 1 piece
  • Panel Cutout Dimensions: 22.3mm (round)
  • Requirements: contact block(s)
  • Compatibility: Siemens 22mm series
  • ECCN: EAR99
  • REACH: unaffected
  • Base Product Number: 3SU1000
  • Product Status: Active
