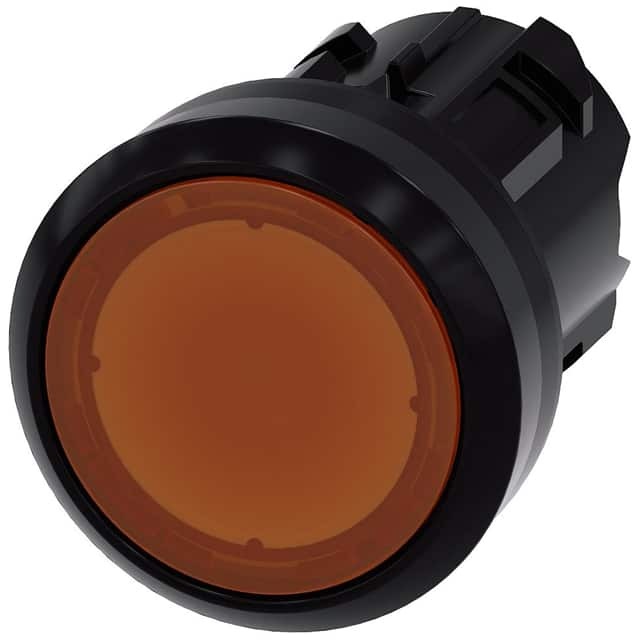

3SU10010AB000AA0 Siemens
Same model may have multiple batches, images only for reference.

3SU10010AB000AA0

Part No 3SU10010AB000AA0
Manufacturer Siemens
Catalog Configurable Switch Components - Body
Description ILLUMINATED PUSHBUTTON, MOM, AMB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Configurable Switch Components - Body
Mfr Siemens
Series 3SU1
Package Box
Product Status Active
Requires Contact Block(s), Illumination Source
Type Momentary
Illumination Illuminated
Actuator Type Pushbutton, Round
(Select First, Then Apply Filters) Compatible Series Siemens, 22mm
Panel Cutout Dimensions 22.3mm (Round)
Base Product Number 3SU1001
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1172505-3SU10010AB000AA0
Ultra Librarian 3D Model Ultra Librarian 3SU10010AB000AA0 CAD Model

Description

The 3SU1 series momentary switch component with the Win Source Part Number 1172505-3SU10010AB000AA0 is a versatile and reliable switch body suitable for various electronic applications.

  • Series: 3SU1
  • Actuator Type: Pushbutton, Round
  • Illuminated: Yes
  • Package: 1 Piece
  • Panel Cutout Dimensions: 22.3mm (Round)
  • Requirements: Contact Block(s), Illumination Source
  • Compatibility: Siemens 22mm Series
  • ECCN: EAR99
  • REACH: Unaffected
