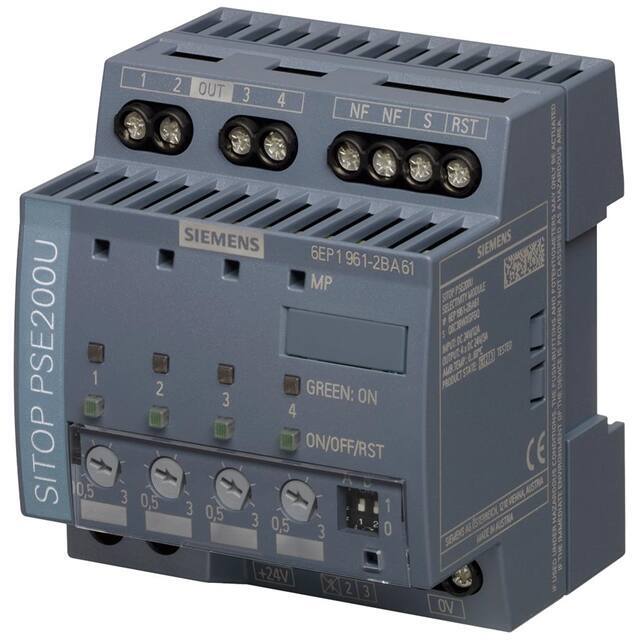

6EP19612BA61 Siemens
Same model may have multiple batches, images only for reference.

6EP19612BA61

Part No 6EP19612BA61
Manufacturer Siemens
Catalog Industrial, DIN Rail Power Supplies
Description DC/DC DIN RAIL SUPPLY QUAD 24V
Datasheet
6EP19612BA61 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - Industrial, DIN Rail Power Supplies
Mfr Siemens
Series 6EP1
Package Box
Product Status Active
Input Type DC
Number of Outputs 4
DC Voltage - Input (Min) 22V
DC Voltage - Input (Max) 30V
Voltage - Output 1 24V
Voltage - Output 2 24V
Voltage - Output 3 24V
Voltage - Output 4 24V
Current - Output (Max) 3A, 3A, 3A, 3A
Applications Industrial, ITE (Commercial)
Efficiency 97%
Temperature Range - Operating -25°C ~ 60°C
Features Adjustable Output, IP20
Size / Dimension 2.83" L x 2.83" W x 3.15" H (72.0mm x 72.0mm x 80.0mm)
Approval Agency CE, cULus, EAC, UL
Standard Number 60950-1; UL 508
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
Win Source Part Number 1048130-6EP19612BA61
Ultra Librarian 3D Model Ultra Librarian 6EP19612BA61 CAD Model

Description

The 6EP1 series Industrial DIN Rail Power Supply is a high-quality and reliable power supply solution for industrial and commercial applications.

  • Output: adjustable output
  • Protection: IP20
  • Package: box package
  • Length: 2.83" (72.0mm)
  • Width: 2.83" (72.0mm)
  • Height: 3.15" (80.0mm)
  • Applications: Industrial and ITE (Commercial) applications
  • Pieces Included: 1
  • Outputs: 4
  • Maximum Output Current: 3A
  • Output Voltage: 24V
  • Efficiency: 97%
  • Minimum Load: none
  • Operating Temperature Range: -25°C to 60°C
  • Manufacturer: Siemens
  • Status: active
  • Approvals: CE, cULus, EAC, and UL
