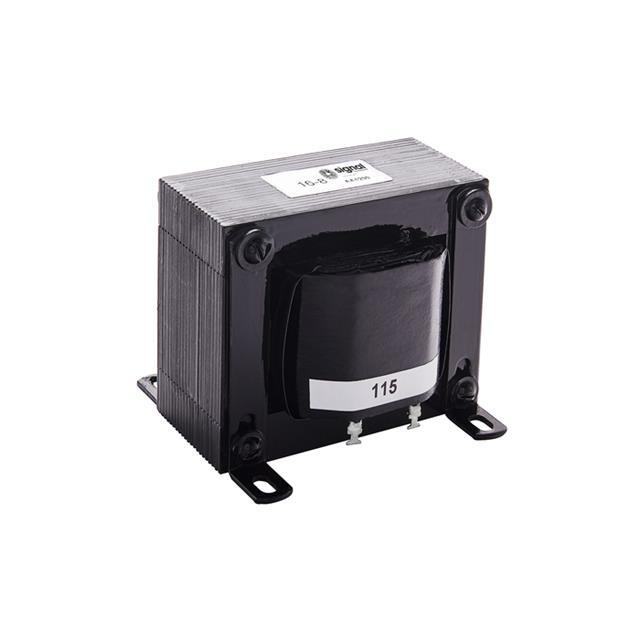

Same model may have multiple batches, images only for reference.
16-100 Signal Transformer – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

16-100

Part No 16-100
Manufacturer Signal Transformer
Catalog Power Transformers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Signal Transformer
Packaging Box
Type Laminated Core
Voltage - Primary 105V, 115V, 125V
Voltage - Secondary (Full Load) Parallel 8V, Series 16V
Current - Output (Max) Parallel 200A, Series 100A
Primary Winding(s) Single, Multiple Taps
Secondary Winding(s) Single, Multiple Taps
Center Tap Yes
Power - Max 1600VA
Mounting Type Chassis Mount
Termination Style Solder, Quick Connect
Size / Dimension 190.50mm L x 190.50mm W
Height - Seated (Max) 162.00mm
Voltage - Isolation 1500Vrms
Weight 50 lbs (22.7 kg)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.32.0000
Win Source Part Number 1481628-16-100
Ultra Librarian 3D Model Ultra Librarian 16-100 CAD Model
