SIM7070G-PCIE SIMCom Wireless Solutions Limited

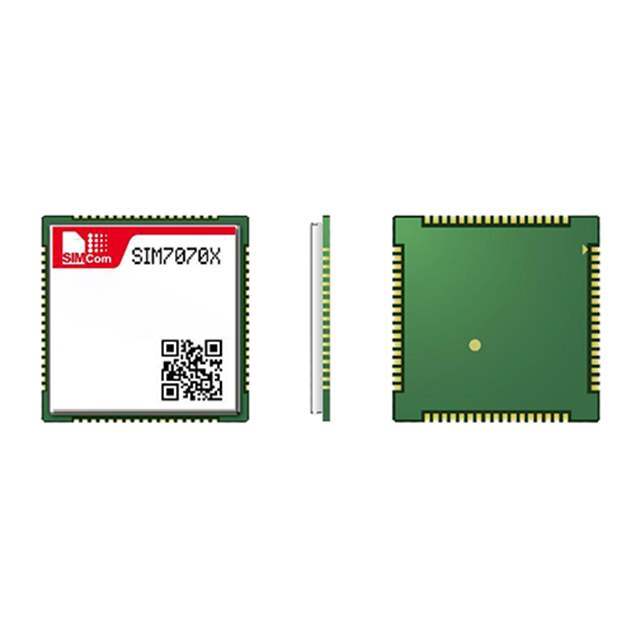

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1307458-SIM7070G-PCIE
Category RF and Wireless RF Transceiver Modules and Modems
Mfr SIMCom Wireless Solutions Limited
Packaging Tray
Part Status Active
RF Family/Standard Cellular, Navigation
Protocol Cat-M, Cat-NB, GNSS, GSM
Frequency 850MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate 1.119Mbps
Power - Output 21dBm
Serial Interfaces ADC, I2C, I2S, PCM, UART, USB
Ultra Librarian 3D Model Ultra Librarian SIM7070G-PCIE CAD Model

Description

  • With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), the SllM7070 series canextend battery life up to 10 years
  • The SlM7070 series provides deeper coverage enhancement compared to GSM
  • The form factor and AT commands of the SlM7070 series are compatible with SlM7000X/SIM800F/SIM900
