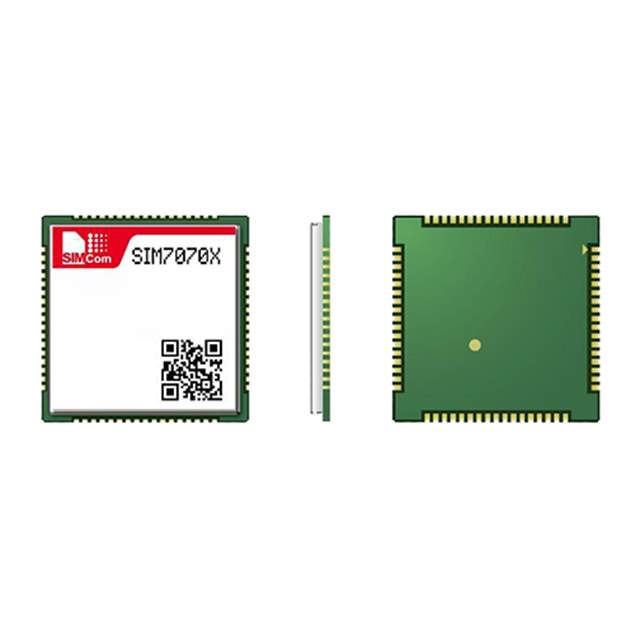

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr SIMCom Wireless Solutions Limited
Package Tray
RF Family/Standard Cellular, Navigation
Protocol Cat-M, Cat-NB, GNSS, GSM
Frequency 850MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate 1.119Mbps
Power - Output 21dBm
Serial Interfaces ADC, I²C, I²S, PCM, UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 3V ~ 4.6V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 68-SMD Module
MSL Level 3 (168 Hours)
ECCN 5A992C 22
HTSUS 8517.62.0090
Other Names S2-108HK,3781-SIM7070G,S2-108HK-Z30RL
Standard Package 400
Win Source Part Number 1158487-SIM7070G
Ultra Librarian 3D Model Ultra Librarian SIM7070G CAD Model

Description

The SIM7070G RF transceiver module from SIMCom Wireless Solutions Limited is a cellular and navigation module that operates at a frequency of 850MHz, 900MHz, 1.8GHz, and 1.9GHz.

  • Frequency: 850MHz, 900MHz, 1.8GHz, 1.9GHz
  • Package: 68-SMD Module
  • Standard Package: 400
  • Protocols: Cat-M, Cat-NB, GNSS, GSM
  • Data Rate: 1.119Mbps
  • Output Power: 21dBm
  • Voltage Supply: 3V to 4.6V
  • Serial Interfaces: ADC, I²C, I²S, PCM, UART, USB
