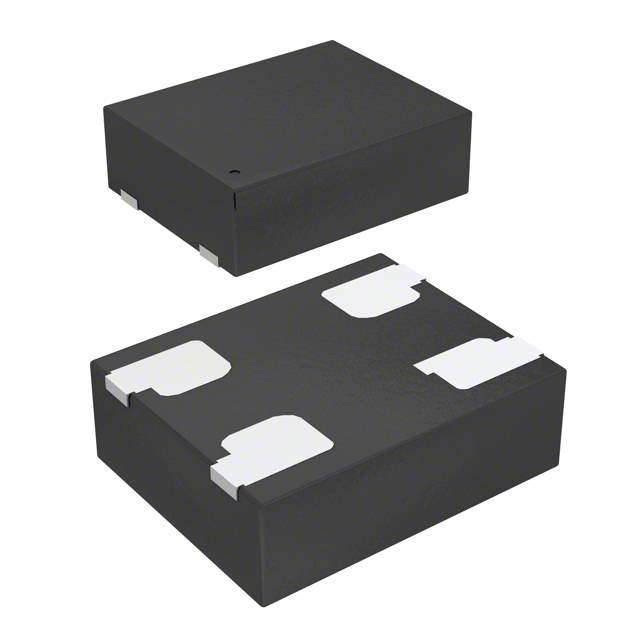

The SIT1602AI-12-18S-19.200000E is a MEMS (Micro-Electro-Mechanical Systems) oscillator manufactured by SiTime. It provides a stable and accurate clock signal for various electronic devices, offering advantages over traditional quartz crystal oscillators in terms of size, ruggedness, and reliability.

Applications

• Microcontrollers
• Processors
• Networking equipment
• Consumer electronics
• Industrial automation
• Mobile devices

Features

• 19.2 MHz output frequency
• ±20 ppm frequency stability
• Low power consumption
• Small size
• Excellent shock and vibration resistance
• Wide operating temperature range
• 3.3V Operation

Benefits

• Provides a precise and reliable clock signal for critical applications.
• Reduces power consumption in battery-powered devices.
• Saves board space due to its small size.
• Offers robust performance in harsh environments.
• Improves system reliability due to its inherent ruggedness.

Additional Details

The SIT1602AI-12-18S-19.200000E operates on a 3.3V supply. The datasheet provides detailed specifications on frequency stability over temperature, jitter performance, rise and fall times, and output drive strength. The "AI-12" likely refers to the voltage and temperature range. Proper decoupling capacitors should be placed close to the device power pins to minimize noise. The absence of a quartz crystal eliminates the need for external load capacitors, simplifying the circuit design. The device's low profile makes it suitable for space-constrained applications. The output signal is typically CMOS compatible. Packaging options vary; consult the datasheet for specific dimensions and pinout information. MEMS oscillators offer a longer lifespan than quartz crystals in many applications.
