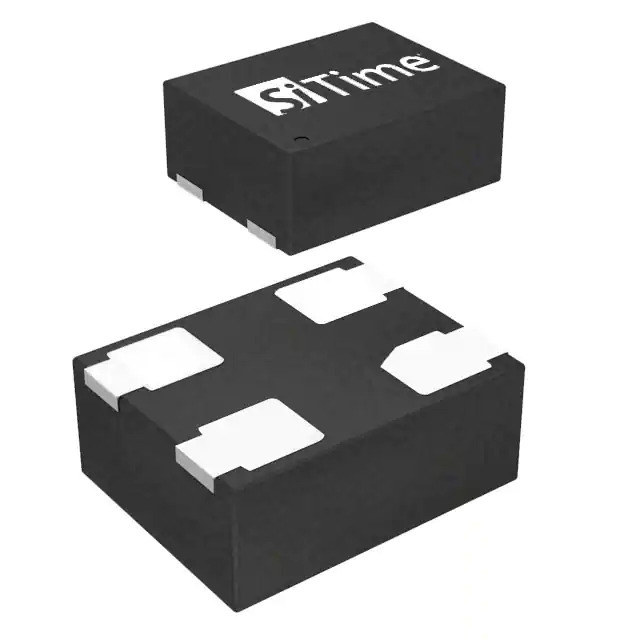

SIT1602BC-73-18E-24.000000 SiTIME
Same model may have multiple batches, images only for reference.

SIT1602BC-73-18E-24.000000

Part No SIT1602BC-73-18E-24.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 24.0000MHZ H/LV-CMOS / 24 MHz XO (Standard) HCMOS, LVCMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Datasheet
SIT1602BC-73-18E-24.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT1602B
Package Strip
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output HCMOS, LVCMOS
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -20°C ~ 70°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 4.1mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1354941-SIT1602BC-73-18E-24.000000
Ultra Librarian 3D Model Ultra Librarian SIT1602BC-73-18E-24.000000 CAD Model

Description

The SiTime SiT1602BC is a strip package crystal oscillator with a frequency of 24 MHz. It belongs to the SiT1602B series by SiTime.

  • Series: SiT1602B
  • Frequency: 24 MHz
  • Temperature Range: -20°C to 70°C
  • Voltage Supply: 1.8V
  • Maximum Supply Current: 4.1mA
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Seated Height: 0.031" (0.80mm)
  • Product Status: Active
  • Package: 4-SMD, No Lead
  • Mounting: Surface Mount
  • Output Signal: HCMOS, LVCMOS
  • Frequency Stability: ±50ppm
  • Type: Enable/Disable
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL: Unlimited
