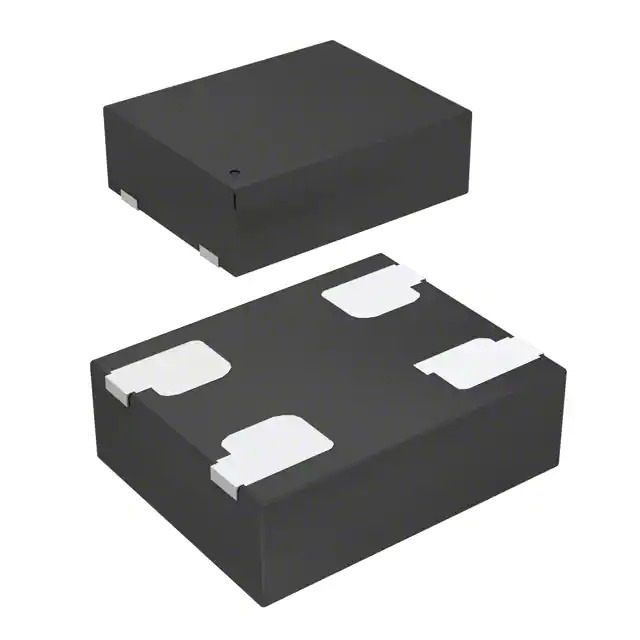

Same model may have multiple batches, images only for reference.
SIT8920BM-12-33E-25.000000 SiTIME
Same model may have multiple batches, images only for reference.

SIT8920BM-12-33E-25.000000

Part No SIT8920BM-12-33E-25.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 25.0000MHZ LVCMOS / 25 MHz XO (Standard) LVCMOS, LVTTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT8920B
Package Strip
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output LVCMOS, LVTTL
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -55°C ~ 125°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 4.5mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1354959-SIT8920BM-12-33E-25.000000
Ultra Librarian 3D Model Ultra Librarian SIT8920BM-12-33E-25.000000 CAD Model

Description

The SiTime 1354959-SIT8920BM-12-33E-25.000000 is a 25 MHz XO (Standard) oscillator in the SiT8920B series.

  • Frequency: 25 MHz
  • Series: SiT8920B
  • Voltage Supply: 3.3V
  • Current Supply (Max): 4.5mA
  • Frequency Stability: ±25ppm
  • Enable/Disable: Yes
  • Base Resonator: MEMS
  • Output: LVCMOS, LVTTL
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.031" (0.80mm)
  • Mounting Type: Surface Mount
