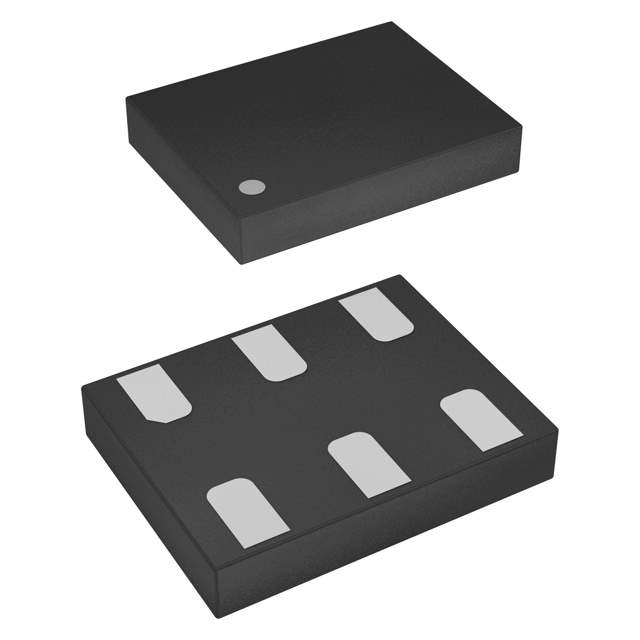

SIT9120AC-1B2-33E133.333000Y Real Image1 SIT9120AC-1B2-33E133.333000Y Real Image2
Same model may have multiple batches, images only for reference.
SIT9120AC-1B2-33E133.333000Y Real Image1 SIT9120AC-1B2-33E133.333000Y Real Image2
SIT9120AC-1B2-33E133.333000Y Real Image1 SIT9120AC-1B2-33E133.333000Y Real Image2
Same model may have multiple batches, images only for reference.

SIT9120AC-1B2-33E133.333000Y

Part No SIT9120AC-1B2-33E133.333000Y
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 133.3330MHZ LVPECL / 133.333 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
SIT9120AC-1B2-33E133.333000Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTIME
Series SiT9120
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 133.333 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -20°C ~ 70°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 69mA
Ratings -
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1 pcs
Win Source Part Number 1383451-SIT9120AC-1B2-33E133.333000Y
Ultra Librarian 3D Model Ultra Librarian SIT9120AC-1B2-33E133.333000Y CAD Model

Description

The SiT9120AC-1B2-33E133.333000Y is a 133.333 MHz oscillator from the SiT9120 series by SiTIME.

  • Functionality: Enable/Disable
  • Output: LVPECL
  • Frequency Stability: ±25ppm
  • Supply Voltage: 3.3V
  • Supply Current (Max): 69mA
  • Package: 6-SMD, no lead
  • Temperature Range: -20°C to 70°C
