Same model may have multiple batches, images only for reference.

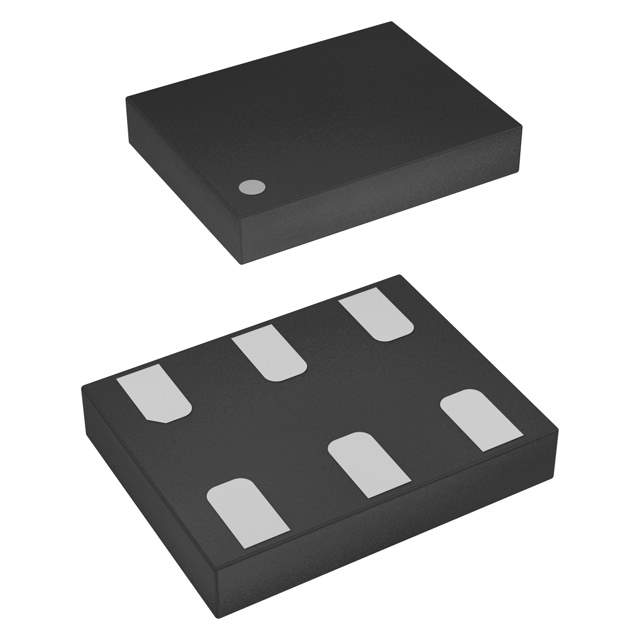

SIT9121AI-2B2-XXE125.000000Y Real Image
Same model may have multiple batches, images only for reference.

SIT9121AI-2B2-XXE125.000000Y

Part No SIT9121AI-2B2-XXE125.000000Y
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 125.0000MHZ LVDS SMD / 125 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.63V Enable/Disable 6-SMD, No Lead
Datasheet
SIT9121AI-2B2-XXE125.000000Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT9121
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 125 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.25V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 55mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 35mA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1473-SIT9121AI-2B2-XXE125.000000YTR,1473-29494-2-ND,1473-29494-2
Standard Package 1,000
Win Source Part Number 1166797-SIT9121AI-2B2-XXE125.000000Y
Ultra Librarian 3D Model Ultra Librarian SIT9121AI-2B2-XXE125.000000Y CAD Model

Description

The SiT9121 series XO is a high-performance oscillator designed for use in various applications.

  • Package: 6-SMD, No Lead
  • Height: 0.031 inches
  • Frequency: 125 MHz
  • Frequency Stability: +/- 25ppm
  • Voltage Supply: 2.25V to 3.63V
  • Maximum Current Supply: 55mA
  • Enable/Disable Function: Yes
  • Output: LVDS
  • Temperature Range: -40°C to 85°C
