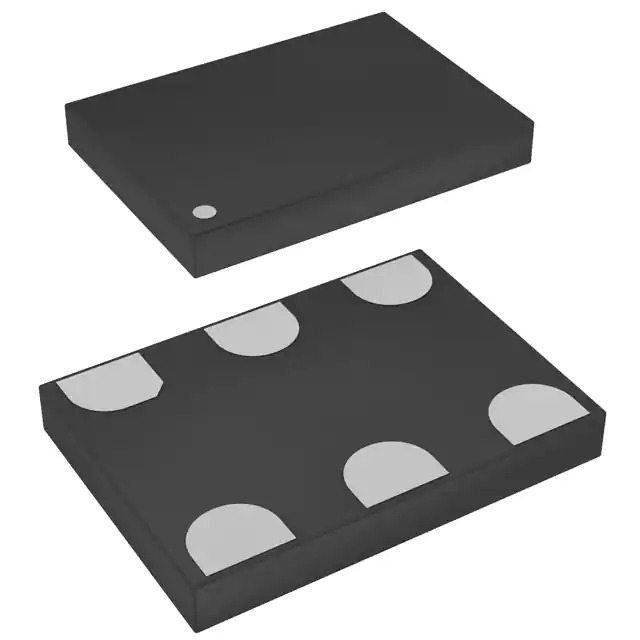

Same model may have multiple batches, images only for reference.
SIT9121AI-2D3-XXE200.000000 SiTIME
Same model may have multiple batches, images only for reference.

SIT9121AI-2D3-XXE200.000000

Part No SIT9121AI-2D3-XXE200.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 200.0000MHZ LVDS SMD / 200 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.63V Enable/Disable 6-SMD, No Lead
Datasheet
SIT9121AI-2D3-XXE200.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT9121
Package Strip
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 200 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.25V ~ 3.63V
Frequency Stability ±50ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 55mA
Ratings -
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1354942-SIT9121AI-2D3-XXE200.000000
Ultra Librarian 3D Model Ultra Librarian SIT9121AI-2D3-XXE200.000000 CAD Model

Description

The SiTime SiT9121AI-2D3-XXE200.000000 is a surface mount crystal oscillator with a frequency of 200 MHz. It is part of the SiT9121 series from SiTime and is designed for use in various electronic applications.

  • Series: SiT9121
  • Frequency: 200 MHz
  • Temperature Range: -40°C to 85°C
  • Voltage Supply: 2.25V to 3.63V
  • Maximum Supply Current: 55mA
  • Resonator Type: MEMS
  • Output: LVDS
  • Frequency Stability: ±50ppm
  • Package Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height: 0.039" (1.00mm)
  • Mounting: Surface Mountable
  • Package: 6-SMD, No Lead
