Same model may have multiple batches, images only for reference.

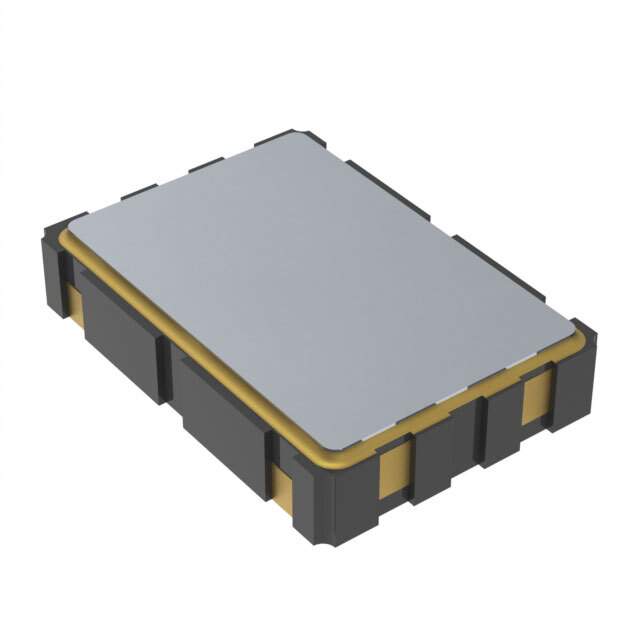

510CBA16M0000BAG Real Image
Same model may have multiple batches, images only for reference.

510CBA16M0000BAG

Part No 510CBA16M0000BAG
Manufacturer Skyworks Solutions Inc.
Catalog Oscillators
Description XTAL OSC XO 16.0000MHZ CMOS SMD / 16 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
510CBA16M0000BAG Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Skyworks Solutions Inc.
Series Si510
Package Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 16 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 26mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.050" (1.28mm)
Current - Supply (Disable) (Max) 18mA
Base Product Number 510CBA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 200
Win Source Part Number 1220868-510CBA16M0000BAG
Ultra Librarian 3D Model Ultra Librarian 510CBA16M0000BAG CAD Model

Description

The Si510 series oscillator with Win Source Part Number 1220868-510CBA16M0000BAG is a high-quality component that provides stable and reliable performance.

  • Series: Si510
  • Win Source Part Number: 1220868-510CBA16M0000BAG
  • Type: Standard XO
  • Frequency: 16 MHz
  • Frequency Stability: ±25ppm
  • Voltage Supply: 3.3V
  • Current Supply: 26mA
  • Disable Current Supply: 18mA
  • Spread Spectrum Bandwidth: Not Specified
  • Mounting: Surface Mount Device
  • Package Size: 4-SMD, No Lead
