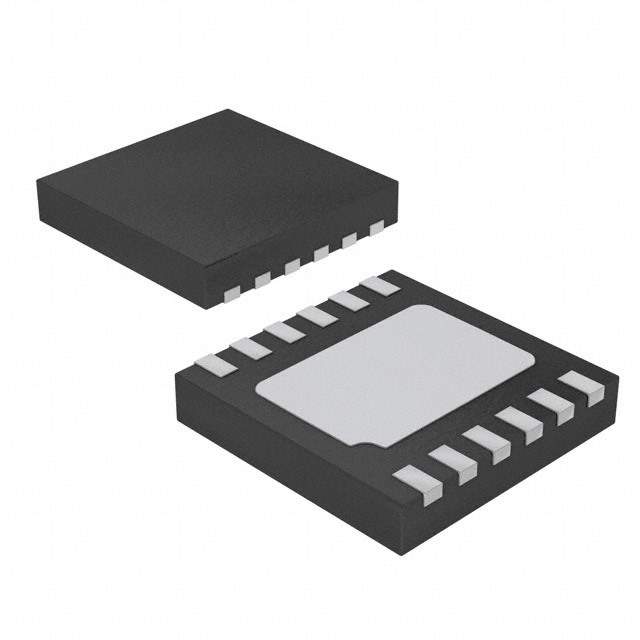

The AAT1219IWP-1-1.2 is a high-efficiency step-down (buck) DC-DC switching regulator manufactured by Skyworks Solutions Inc. It is designed to provide a regulated 1.2V output voltage from a higher input voltage. This regulator is suitable for a wide range of portable and battery-powered applications where efficiency and space are critical.

Applications:

• Smartphones and Tablets: Used to power core processors, memory, and other critical components.
• Portable Media Players: Provides efficient power management for audio and video playback.
• Digital Cameras: Powers image sensors, processors, and displays.
• GPS Devices: Regulates voltage for navigation and communication modules.
• Wearable Devices: Used in smartwatches, fitness trackers, and other wearable electronics.
• IoT Devices: Powers sensors, microcontrollers, and communication interfaces in IoT applications.

Features:

• High Efficiency: Achieves high efficiency over a wide load range, minimizing power dissipation and extending battery life.
• Fixed 1.2V Output Voltage: Provides a stable and accurate 1.2V output voltage.
• Wide Input Voltage Range: Operates from a wide input voltage range, typically 2.7V to 5.5V.
• Low Quiescent Current: Consumes very low quiescent current in standby mode, further extending battery life.
• Integrated MOSFETs: Includes integrated power MOSFETs, reducing the external component count and solution size.
• Short-Circuit Protection: Provides short-circuit protection to prevent damage to the regulator and connected components.
• Over-Temperature Protection: Includes over-temperature protection to shut down the regulator in case of excessive heat.
• Small Package: Available in a small WLCSP (Wafer Level Chip Scale Package) for space-constrained applications.

Benefits:

• Extended Battery Life: High efficiency and low quiescent current maximize battery life in portable applications.
• Stable Output Voltage: Provides a stable and accurate 1.2V output voltage, ensuring reliable operation of powered devices.
• Reduced Solution Size: Integrated MOSFETs and small package minimize the overall solution size.
• Enhanced System Reliability: Short-circuit and over-temperature protection enhance system reliability and prevent damage.
• Simplified Design: Integrated features and small package simplify the design process.

Additional Details:

The AAT1219IWP-1-1.2 typically operates at a switching frequency of several MHz, allowing for the use of small external components. It can deliver an output current of up to 1A. The WLCSP package dimensions are typically less than 2mm x 2mm. Consult the Skyworks Solutions Inc. datasheet for complete specifications, including detailed electrical characteristics, thermal performance, and application circuit recommendations.
