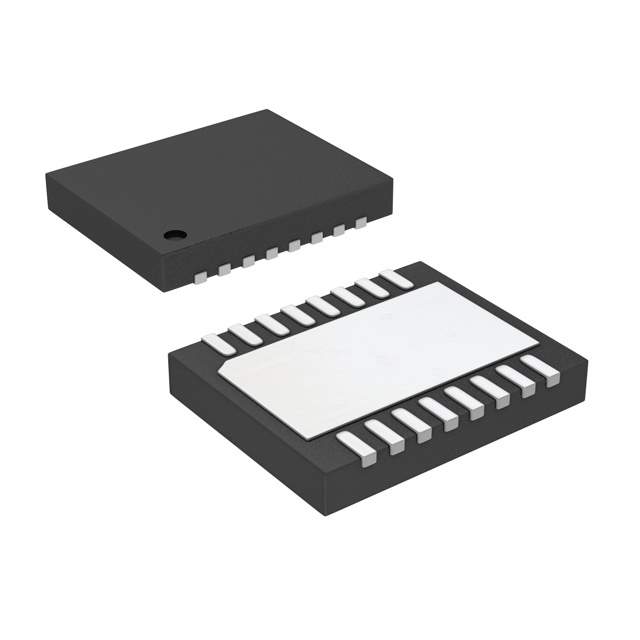

AAT2522IRN-1-T1 Real Image
Same model may have multiple batches, images only for reference.

AAT2522IRN-1-T1

Part No AAT2522IRN-1-T1
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK ADJ 3A DL SYNC 16DFN
Datasheet
AAT2522IRN-1-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 2
Minimum Input Voltage 2.7V
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 0.6V
Maximum Output Voltage 5.5V
Output Current 3A
Frequency - Switching 1.4MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-TDFN (3x4)
Win Source Part Number 007754-AAT2522IRN-1-T1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AAT2522IRN-1-T1 CAD Model

Description

Product Overview

The AAT2522IRN-1-T1 dual-output DC-DC converter is engineered to provide superior performance in power management applications.

Features and Benefits

  • Synchronization Capability: Reduces external component count for simplified design.
  • Efficient Load Regulation: Ensures stable output under varying loads.
  • Thermal Protection: Safeguards against overheating, increasing component longevity.

Applications

  • Digital Cameras
  • Bluetooth Devices
  • Consumer Electronics

Additional Details

Engineers designing smart, resource-efficient devices will find the AAT2522IRN-1-T1 an excellent choice for balancing efficiency and performance in compact applications.
