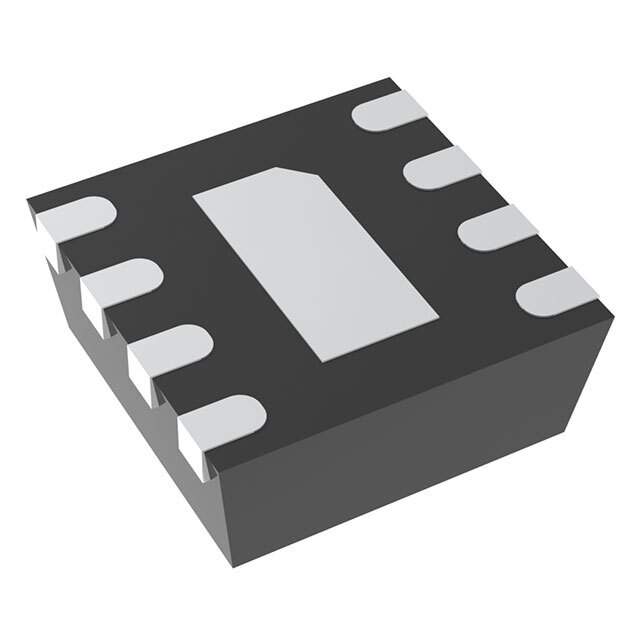

AAT4616IPS-1-T1 Real Image
Same model may have multiple batches, images only for reference.

AAT4616IPS-1-T1

Part No AAT4616IPS-1-T1
Manufacturer Skyworks Solutions Inc.
Catalog PMIC - Hot Swap Controllers
Description IC PWR SWITCH P-CHAN 1:1 8TDFN / Power Switch/Driver 1:1 P-Channel 2A 8-TDFN (2x2)
Datasheet
AAT4616IPS-1-T1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Obsolete
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type P-Channel
Interface On/Off
Voltage - Load 2.4V ~ 5.5V
Supply Voltage - Operating Not Required
Current - Output (Max) 2A
Rds On (Typ) 130mOhm
Input Type Non-Inverting
Features Status Flag
Fault Protection Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Supplier Device Package 8-TDFN (2x2)
Package / Case 8-VFDFN Exposed Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 863-1554-6,AAT4616IPS1T1,863-1554-2,1287-AAT4616IPS-1-T1,863-1554-1
Standard Package 3,000
Win Source Part Number 1042416-AAT4616IPS-1-T1
Ultra Librarian 3D Model Ultra Librarian AAT4616IPS-1-T1 CAD Model

Description

The AAT4616IPS-1-T1 is a P-Channel high side load switch manufactured by Skyworks Solutions Inc.

  • Input Type: Non-inverting
  • Interface: On/Off
  • Protection: Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
  • Number of Outputs: 1
  • Output Current (Max): 2A
  • Output Configuration: High Side
  • Voltage Load: 2.4V to 5.5V
  • Switch Type: General Purpose
  • Package: 8-VFDFN Exposed Pad
  • Operating Temperature: -40°C to 85°C (TA)
  • Operating Supply Voltage: N/A
  • Alternative Parts: AP2311FGEG-7, AP2401FGE-7, AP2552FDC-7, MIC94305YMT-TR, MIC94044YFL-TR, ST890DTRAAT4616IPS1T1
