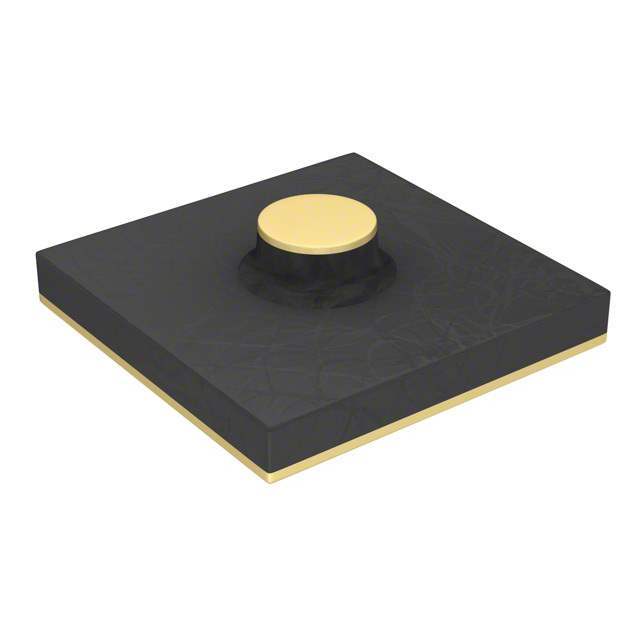

APD0510-000 Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

APD0510-000

Part No APD0510-000
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description RF DIODE PIN 50V DIE
Datasheet
APD0510-000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306431-APD0510-000
Category Discrete Semiconductor Products Diodes RF Diodes
Manufacturer Skyworks Solutions Inc.
Packaging Bulk
Part Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 50V
Current - Max 200 mA
Capacitance @ Vr, F 0.1pF @ 50V, 1MHz
Resistance @ If, F 1.5Ohm @ 10mA, 500MHz
Operating Temperature -65°C ~ 175°C (TJ)
Ultra Librarian 3D Model Ultra Librarian APD0510-000 CAD Model

Description

  • Established Skyworks PIN diode process
  • Low capacitance designs to 0.05 pF
  • Voltage ratings to 200 V
  • Chip size < 15 mils square
  • Tight control of I layer base width
  • Mesa and planar chip designs
