AS183-92LF

Part No AS183-92LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC SW SPDT 300K-2.5GHZ SC70-6
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Frequency - Lower 300kHz
Frequency - Upper 2.5GHz
Isolation @ Frequency 13dB @ 2.5GHz (typ)
Insertion Loss @ Frequency 0.55dB @ 2.5GHz
IIP3 50dBm (typ)
Topology Reflective
Circuit SPDT
P1dB 34dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
Supply Voltage - Operating 3V
RF Type General Purpose

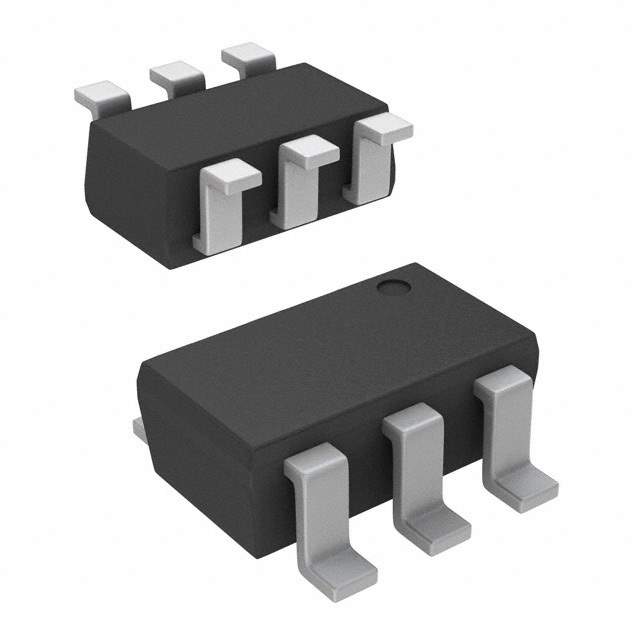

Case / Package SC-70-6
Win Source Part Number 010236-AS183-92LF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AS183-92LF CAD Model

Description

The AS183-92LF is engineered for superior RF control in high-performance environments. It is built to accommodate a wide range of frequencies and offers robust functionality.

Features and Benefits

  • Excellent Frequency Range: Covers extensive bandwidth, versatile for multiple uses.
  • Durable Construction: Ensures long-lasting performance and stability.
  • Easy Integration: Compatible with existing systems, facilitating seamless upgrades.

Applications

  • Broadcast Systems
  • Wireless Infrastructure
  • Aerospace and Defense
  • Automated Test Equipment

This RF switch is perfect for high-stakes applications where reliability and performance are paramount.
