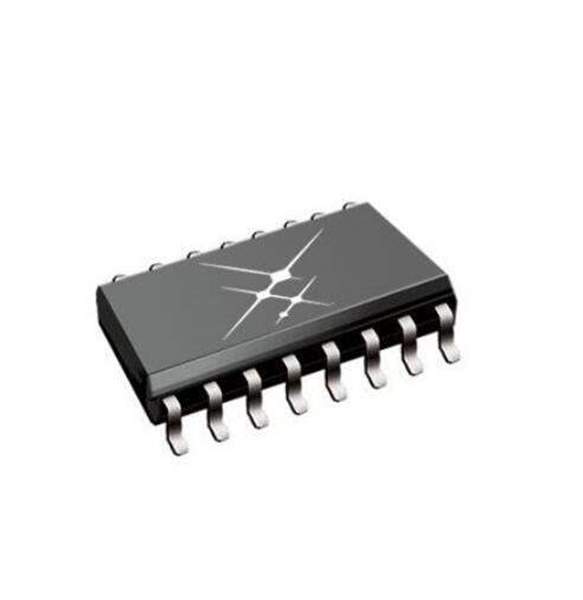

SI8640AB-B-IS1Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

SI8640AB-B-IS1

Part No SI8640AB-B-IS1
Manufacturer Skyworks Solutions Inc.
Catalog Digital Isolators
Description DGTL ISO 2500VRMS 4CH GP 16SOIC
Datasheet
SI8640AB-B-IS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203283-SI8640AB-B-IS1
Win Source Part Number Cross
Manufacturer Skyworks Solutions Inc.
Category Isolators Digital Isolators
Series Si864x
Package Tube
Product Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 4
Ultra Librarian 3D Model Ultra Librarian SI8640AB-B-IS1 CAD Model

Description

Device behavior during start-up, normal operation, and shutdown is shown in Figure 3.1 Device Behavior during Normal Operation on page 8, where UVLO+ and UVLO- are the positive-going and negative-going thresholds respectively. Refer to the table below to determine outputs when power supply (VDD) is not present. Additionally, refer to Table 3.2 Enable Input Truth1 on page 7 for logic conditions when enable pins are used.
