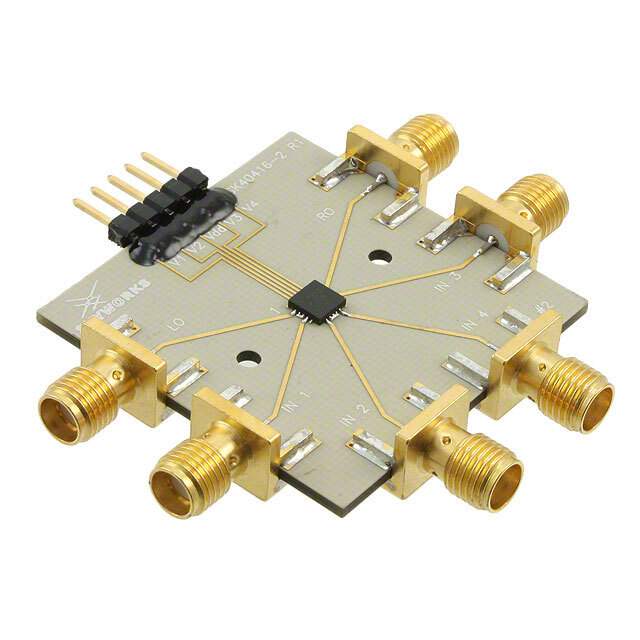

SKY13272-340LF Real Image
Same model may have multiple batches, images only for reference.

SKY13272-340LF

Part No SKY13272-340LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC SW 250M-2.15GHZ 20QFN
Datasheet
SKY13272-340LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel
Part Status Active
Frequency - Lower 250MHz
Frequency - Upper 2.15GHz
Isolation @ Frequency 31dB @ 2.15GHz (typ)
Insertion Loss @ Frequency 8.5dB @ 2.15GHz
P1dB 15dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type DBS
Case 20-WFQFN Exposed Pad
Supplier Device Package 20-QFN (4x4)
Win Source Part Number SKY13272-340LF-324747
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SKY13272-340LF CAD Model

Description

The SKY13272-340LF-324747 is a DBS RF switch manufactured by Skyworks Solutions Inc. It has an impedance of 50 Ohm and a frequency range between 250MHz and 2.15GHz.

  • RF Switch Type: DBS
  • Impedance: 50 Ohm
  • Frequency Range: 250MHz and 2.15GHz
  • Insertion Loss @ Frequency: 8.5dB @ 2.15GHz
  • Isolation @ Frequency: 31dB @ 2.15GHz (typ)
  • P1dB: 15dBm (typ) IP1dB
  • Package: 20-QFN (4x4)
  • Temperature Range: -40°C to 85°C
