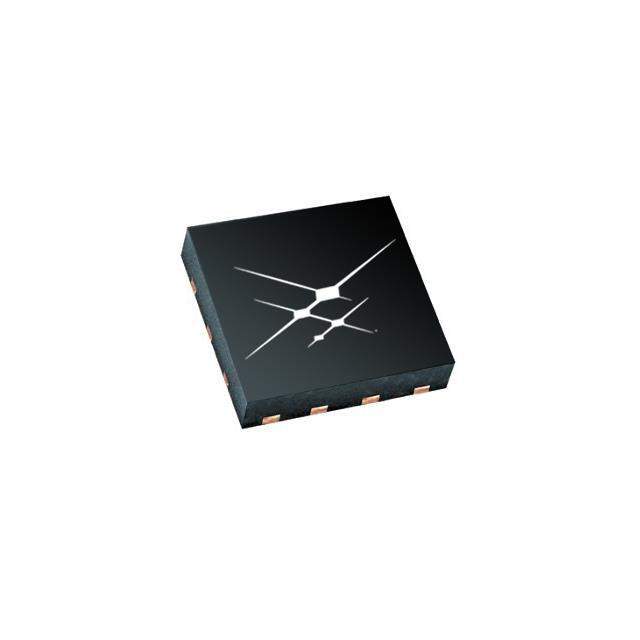

SI8234AB-D-IM1R Real Image
Same model may have multiple batches, images only for reference.

SI8234AB-D-IM1R

Part No SI8234AB-D-IM1R
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description ISOLATED GATE DRIVER / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-QFN (5x5)
Datasheet
SI8234AB-D-IM1R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 45kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VDFN
Supplier Device Package 14-QFN (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8234
Standard Package 2,500
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243679-SI8234AB-D-IM1R
Ultra Librarian 3D Model Ultra Librarian SI8234AB-D-IM1R CAD Model

Description

The SI8234AB-D-IM1R from Skyworks Solutions is an isolator gate driver that is designed to provide a reliable and easy-to-use connection for your electronic components.

  • Series: Automotive, AEC-Q100
  • Packaging: Tape & Reel
  • Standard Package: 2,500
  • Approvals: CQC, CSA, UR, and VDE
  • Common Mode Transient Immunity: 45kV/µs
  • Voltage Isolation: 2500Vrms
  • Market Threat: 45% in the open market
