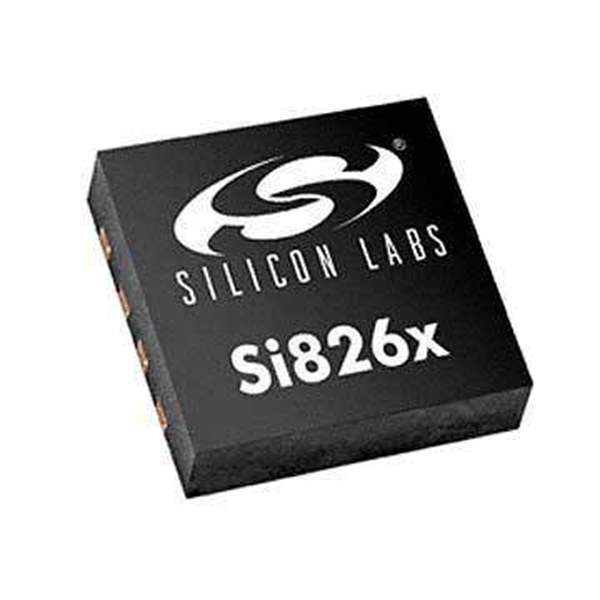

SI8261ACD-C-IM Real Image
Same model may have multiple batches, images only for reference.

SI8261ACD-C-IM

Part No SI8261ACD-C-IM
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 5KV 1CH GATE DRVR 8LGA / 600mA Gate Driver Capacitive Coupling 5000Vrms 1 Channel 8-LGA (10x12.5)
Datasheet
SI8261ACD-C-IM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tray
Product Status Obsolete
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 50ns
Pulse Width Distortion (Max) 28ns
Rise / Fall Time (Typ) 5.5ns, 8.5ns
Current - Output High, Low 400mA, 600mA
Current - Peak Output 600mA
Voltage - Forward (Vf) (Typ) 2.8V (Max)
Current - DC Forward (If) (Max) 30 mA
Voltage - Output Supply 13.5V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-VELGA
Supplier Device Package 8-LGA (10x12.5)
Approval Agency CQC, CSA, UR, VDE
Other Names 336-2423
Standard Package 96
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243599-SI8261ACD-C-IM
Ultra Librarian 3D Model Ultra Librarian SI8261ACD-C-IM CAD Model

Description

The SI8261ACD-C-IM isolator gate driver is a part of the automotive AEC-Q100 series from Skyworks Solutions Inc.

  • Technology: Capacitive coupling
  • Current Output High: 400mA
  • Current Output Low: 600mA
  • Maximum Forward Current: 30mA
  • Typical Forward Voltage: 2.8V
  • Rise Time: 5.5ns
  • Fall Time: 8.5ns
  • Propagation Delay tpLH/tpHL: 60ns, 50ns
  • Common Mode Transient Immunity: 35kV/μs
  • Pulse Width Distortion: 28ns
  • Isolation Voltage: 5000Vrms
  • Package: 8-VELGA
  • Supplier Device Package: 8-LGA (10x12.5)
  • Operating Temperature Range: -40°C to 125°C
  • Status: Obsolete
  • Approval Agencies: CQC, CSA, UR, and VDE
