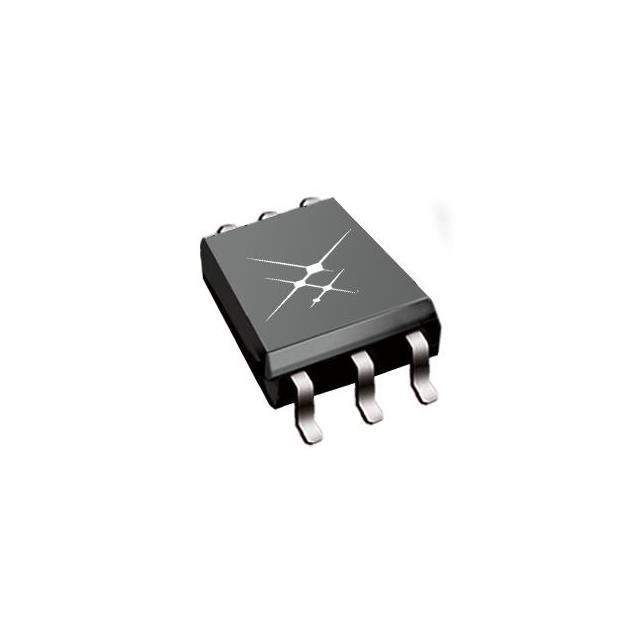

SI8261BAD-C-ISR

Name: SI8261BAD-C-ISR
Brand: Skyworks Solutions Inc.
SKU: 1243718
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SI8261BAD-C-ISR
Manufacturer	Skyworks Solutions Inc.
Catalog	Isolators - Gate Drivers
Description	DGTL ISO 5KV 1CH GATE DRVR 6SDIP / 4A Gate Driver Capacitive Coupling 5000Vrms 1 Channel 6-SDIP Gull Wing
Datasheet	SI8261BAD-C-ISR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Isolators - Gate Drivers
Mfr	Skyworks Solutions Inc.
Series	Automotive, AEC-Q100
Package	Tape & Reel
Technology	Capacitive Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	60ns, 50ns
Pulse Width Distortion (Max)	28ns
Rise / Fall Time (Typ)	5.5ns, 8.5ns
Current - Output High, Low	500mA, 1.2A
Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	2.8V (Max)
Current - DC Forward (If) (Max)	30 mA
Voltage - Output Supply	6.5V ~ 30V
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SDIP Gull Wing
Approval Agency	CQC, CSA, UR, VDE
Base Product Number	SI8261
Other Names	336-5207-2,336-5207-6,SI8261BAD-C-ISR,336-5207-1
Standard Package	1,000
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1243718-SI8261BAD-C-ISR
Ultra Librarian 3D Model	Ultra Librarian SI8261BAD-C-ISR CAD Model

Alternative Products

Description

The SI8261BAD-C-ISR is an isolator gate driver from Skyworks Solutions Inc. that is a part of the automotive AEC-Q100 series.

Current Output: 500mA and 1.2A for high and low, respectively.
Forward Voltage: 2.8V
Rise/Fall Time: 5.5ns and 8.5ns, respectively.
Common Mode Transient Immunity: 35kV/μs
Voltage Isolation: 5000Vrms
Technology: Capacitive coupling
