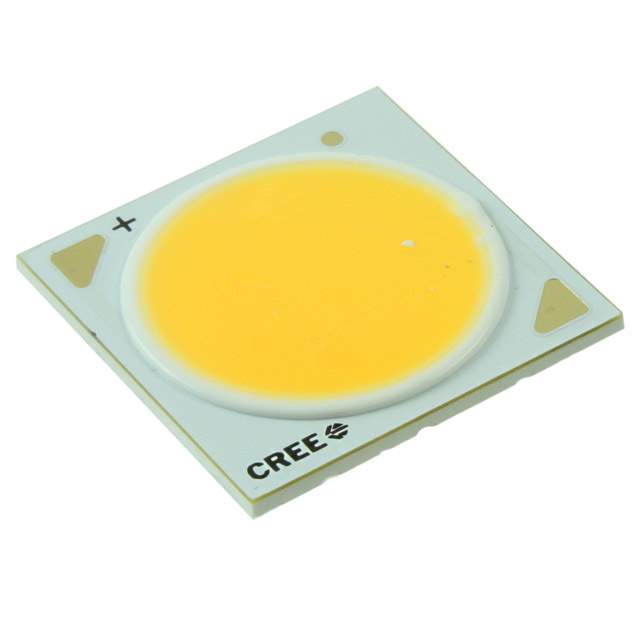

CXA2520-0000-000N00Q427G Real Image
Same model may have multiple batches, images only for reference.

CXA2520-0000-000N00Q427G

Part No CXA2520-0000-000N00Q427G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA2520 2700K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA2520-0000-000N00Q427G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA2520
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2340 lm (2260 lm ~ 2420 lm)
Current - Test 550mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 118 lm/W
Current - Max 1.25A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Diameter
Lens Type Flat
Win Source Part Number 771978-CXA2520-0000-000N00Q427G
Popularity Medium
Supply and Demand Status Balance
Family Name CXA2520-0000-000N00Q427G
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA2520-0000-000N00Q427G CAD Model

Description

The Cree Inc. CXA2520-0000-000N00Q427G is a chip on board (COB) type LED that is designed for use in optoelectronic applications.

  • Current Rating: 1.25A
  • Voltage Rating: 36V
  • Color: White and Warm
  • Viewing Angle: 115°
  • Height: 1.70mm
  • Lens Type: Flat
  • CCT: 2700K 3-Step MacAdam Ellipse
  • CRI: 80
  • Flux @ Current/Temperature - Test: 2340 lm (2260 lm ~ 2420 lm) @ 85°C
  • LES Diameter: 19.00mm
  • Dimension: 23.85mm L x 23.85mm W
  • ECCN: EAR99
  • Estimated EOL Date: 2026
  • Supply and Demand Status: Balanced
