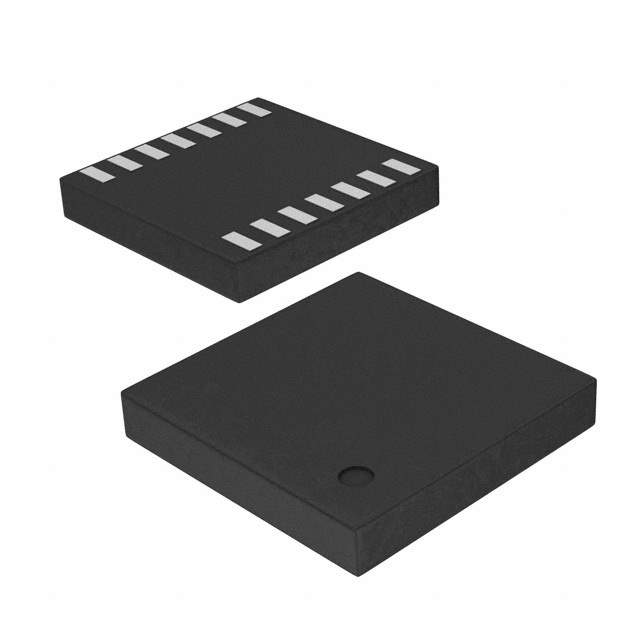

SI8274AB1-IMR Real Image
Same model may have multiple batches, images only for reference.

SI8274AB1-IMR

Part No SI8274AB1-IMR
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRVR 14LGA / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-LGA (5x5)
Datasheet
SI8274AB1-IMR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tape & Reel (TR)
Product Status Not For New Designs
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 150kV/µs
Propagation Delay tpLH / tpHL (Max) 75ns, 60ns
Pulse Width Distortion (Max) 19ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 4.6V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8274
Standard Package 2,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243780-SI8274AB1-IMR
Ultra Librarian 3D Model Ultra Librarian SI8274AB1-IMR CAD Model

Description

The Skyworks Solutions SI8274AB1-IMR is a 2-channel capacitive coupling isolator that is designed for use in gate driver applications. With a current output of 1.8A and 4A, this isolator is capable of delivering reliable performance in a wide range of operating conditions.

  • Channels: 2
  • Technology: Capacitive Coupling
  • Current Output: 1.8A and 4A
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity: 150kV/μs
  • Propagation Delay tpLH: 75ns
  • Propagation Delay tpHL: 60ns
  • Packaging: Tape and Reel
  • Temperature Range: -40°C to 125°C
