Same model may have multiple batches, images only for reference.

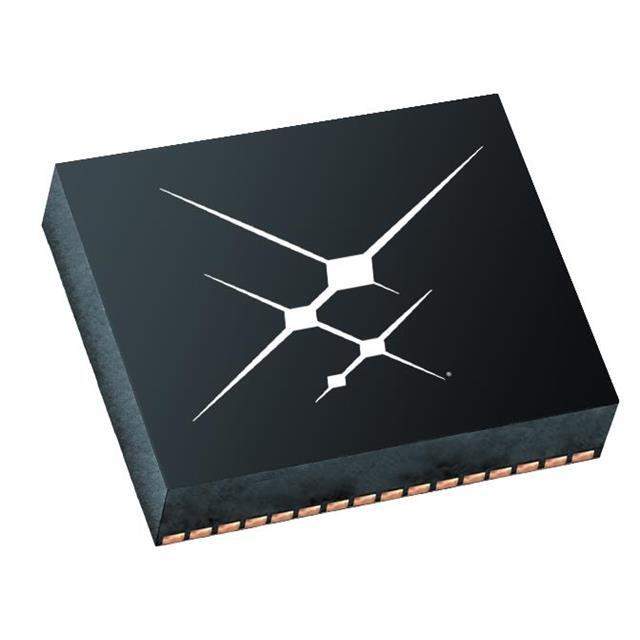

SI83404AAA-IF Real Image
Same model may have multiple batches, images only for reference.

SI83404AAA-IF

Part No SI83404AAA-IF
Manufacturer Skyworks Solutions Inc.
Catalog Digital Isolators
Description DGTL ISOL 1500VRMS 4CH SPI 32DFN / SPI Digital Isolator 1500Vrms 4 Channel 100kV/µs CMTI 32-VFDFN Exposed Pad
Datasheet
SI83404AAA-IF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Digital Isolators
Mfr Skyworks Solutions Inc.
Package Tube
Technology Capacitive Coupling
Type SPI
Isolated Power No
Number of Channels 4
Inputs - Side 1/Side 2 4/0
Channel Type Unidirectional
Voltage - Isolation 1500Vrms
Common Mode Transient Immunity (Min) 100kV/µs
Propagation Delay tpLH / tpHL (Max) 2.3µs, 2.9µs (Typ)
Pulse Width Distortion (Max) 10µs (Min)
Rise / Fall Time (Typ) 3µs, 3µs
Voltage - Supply 2.25V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 32-VFDFN Exposed Pad
Supplier Device Package 32-DFN (9x9)
Base Product Number SI83404
Other Names 336-6075
Standard Package 260
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243989-SI83404AAA-IF
Ultra Librarian 3D Model Ultra Librarian SI83404AAA-IF CAD Model

Description

The Skyworks Solutions Inc. is a digital isolator that is designed to meet the needs of various applications.

  • Category: Isolators
  • Type: SPI
  • Voltage Isolation: 1500Vrms
  • Common Mode Transient Immunity (min): 100kV/μs
  • Temperature Range: -40°C to 125°C
  • Packaging: Tube
  • Rise/Fall Time (typ): 3μs, 3μs
  • Propagation Delay tpLH / tpHL (max): 2.3μs, 2.9μs (typ)
  • Voltage Supply: 2.25V ~ 5.5V
