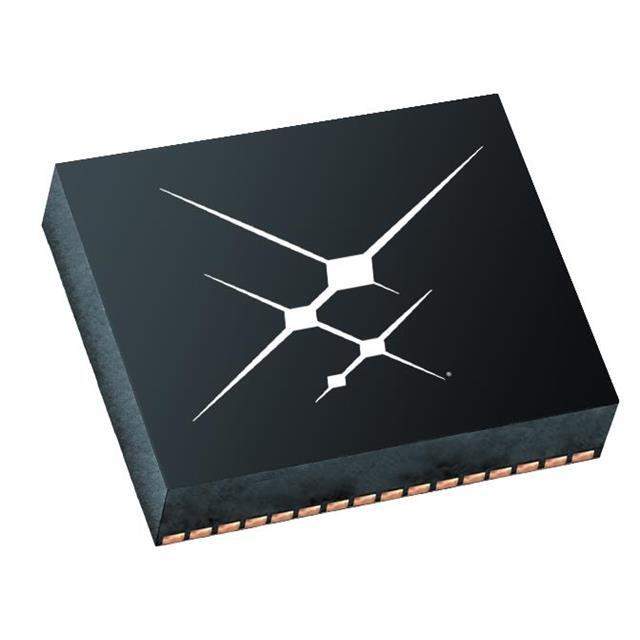

SI83414AAA-IF Real Image
Same model may have multiple batches, images only for reference.

SI83414AAA-IF

Part No SI83414AAA-IF
Manufacturer Skyworks Solutions Inc.
Catalog Digital Isolators
Description DGTL ISOL 1500VRMS 4CH SPI 32DFN / SPI Digital Isolator 1500Vrms 4 Channel 100kV/µs CMTI 32-VFDFN Exposed Pad
Datasheet
SI83414AAA-IF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Digital Isolators
Mfr Skyworks Solutions Inc.
Package Tray
Technology Capacitive Coupling
Type SPI
Isolated Power No
Number of Channels 4
Inputs - Side 1/Side 2 4/0
Channel Type Unidirectional
Voltage - Isolation 1500Vrms
Common Mode Transient Immunity (Min) 100kV/µs
Propagation Delay tpLH / tpHL (Max) 2.3µs, 2.9µs (Typ)
Pulse Width Distortion (Max) 10µs (Min)
Rise / Fall Time (Typ) 3µs, 3µs
Voltage - Supply 2.25V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 32-VFDFN Exposed Pad
Supplier Device Package 32-DFN (9x9)
Base Product Number SI83414
Other Names 336-6082
Standard Package 260
MSL Level 6 (Time on Label)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1244101-SI83414AAA-IF
Ultra Librarian 3D Model Ultra Librarian SI83414AAA-IF CAD Model

Description

The SI83414AAA-IF is a digital isolator from Skyworks Solutions Inc.

  • Isolator Type: capacitive-coupling
  • Type: SPI
  • Channels: four
  • Voltage Isolation: 1500Vrms
  • Rise and Fall Time: 3μs
  • Propagation Delay tpLH/tpHL: 2.3μs and 2.9μs (typical)
  • Pulse Width Distortion: 10μs (min)
  • Supply Voltage Range: 2.25V to 5.5V
  • Operating Temperature Range: -40°C to 125°C
  • Package: 32-VFDFN exposed pad package
  • Mounting: SMD (SMT) technology
  • Common Mode Transient Immunity: 100kV/μs
