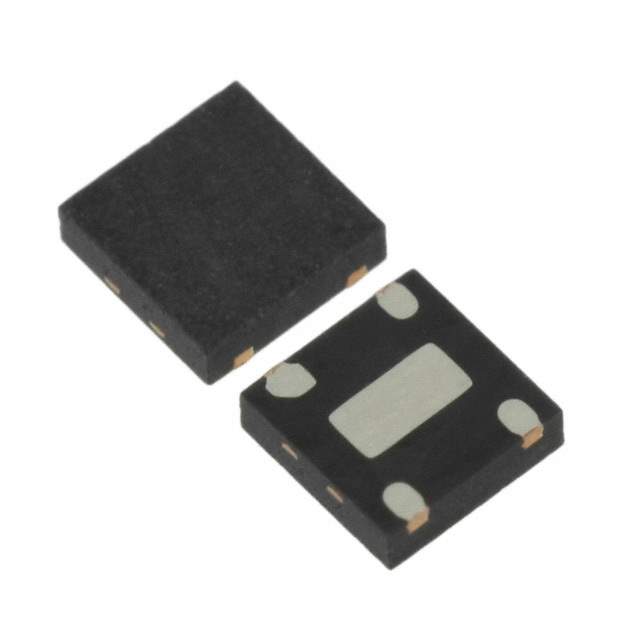

The SKY65051-377LF is a high-performance, fully integrated front-end module (FEM) designed for high-power Wi-Fi applications in the 2.4 GHz band. This FEM integrates a power amplifier (PA), a low noise amplifier (LNA) with bypass, and a transmit/receive (T/R) switch, all in a compact package. It is designed to improve the range and performance of Wi-Fi connectivity in various devices.

Applications:

• Wi-Fi enabled routers and access points: Used to enhance signal strength and range.
• Wireless repeaters and extenders: Improves coverage in larger homes or offices.
• IoT devices with Wi-Fi connectivity: Provides reliable wireless communication for smart home devices, sensors, and other connected devices.
• Wireless video streaming devices: Ensures stable and high-quality video transmission.
• Gaming consoles and peripherals: Enhances wireless connectivity for online gaming.

Features:

• Integrated PA, LNA, and T/R switch: Reduces component count and simplifies design.
• High transmit power: Delivers robust signal strength for extended range.
• Low noise figure: Improves receiver sensitivity.
• Bypass mode: Allows the LNA to be bypassed for improved linearity in high-signal environments.
• Compact package: Enables integration into small form factor devices.
• 2.4 GHz band operation: Complies with standard Wi-Fi frequencies.

Benefits:

• Extended Wi-Fi range: Improves coverage and reduces dead zones.
• Enhanced signal quality: Ensures reliable wireless connectivity.
• Simplified design: Reduces component count and simplifies board layout.
• Improved receiver sensitivity: Captures weak signals for better performance at the edge of coverage.
• Reduced power consumption: Optimized for efficient operation.
• Cost-effective solution: Integrated design reduces overall system cost.

Additional Details:

The SKY65051-377LF operates in the 2.4 GHz ISM band. It is designed for use in IEEE 802.11b/g/n/ax Wi-Fi systems. The device features a high-efficiency power amplifier that delivers significant output power while minimizing power consumption. The integrated LNA provides a low noise figure, improving receiver sensitivity and overall system performance. The T/R switch enables seamless switching between transmit and receive modes. The bypass mode allows the LNA to be bypassed, improving linearity in high-signal environments. This FEM is typically supplied in a compact, surface-mount package, allowing for easy integration into a variety of applications. It is RoHS compliant.
