Same model may have multiple batches, images only for reference.

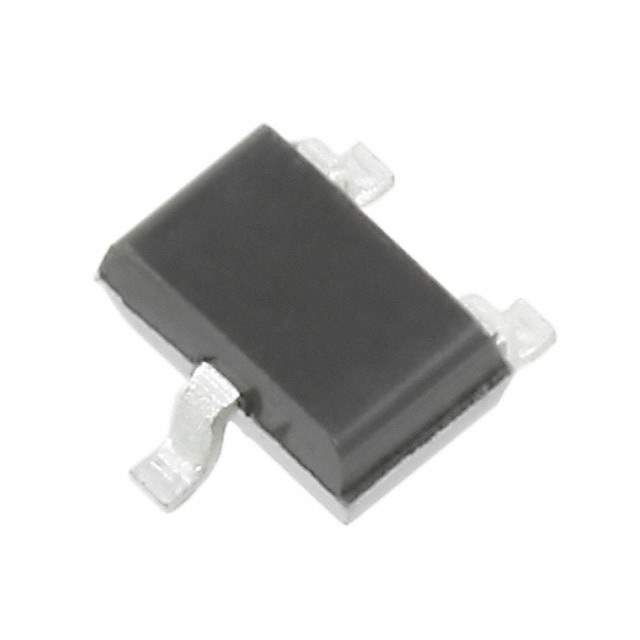

SMP1340-075LF Real Image
Same model may have multiple batches, images only for reference.

SMP1340-075LF

Part No SMP1340-075LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description DIODE PIN 50V 250MW
Datasheet
SMP1340-075LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Diode Type PIN - 1 Pair Series Connection
Voltage - Peak Reverse (Max) 50V
Capacitance @ Vr, F 0.3pF @ 5V, 1MHz
Resistance @ If, F 1.2 Ohm @ 10mA, 100MHz
Power Dissipation (Max) 250mW
Temperature Range - Operating -65°C to 150°C (TA)
Case / Package SC-70-3
Win Source Part Number 1098575-SMP1340-075LF
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management
Ultra Librarian 3D Model Ultra Librarian SMP1340-075LF CAD Model

Description

The SMP1340-075LF is a PIN diode manufactured by Skyworks Solutions Inc.

  • Packaging: Reel - TR
  • Capacitance: 0.3pF @ 5V, 1MHz
  • Voltage Peak Reverse (max): 50V
  • Power Dissipation (max): 250mW
  • Resistance @ If, F: 1.2 Ohm @ 10mA, 100MHz
  • Application: Suitable for use in various applications, including industrial and power management
  • Operating Temperature Range: -65°C to 150°C (TA)
  • Package: SC-70-3
