Same model may have multiple batches, images only for reference.

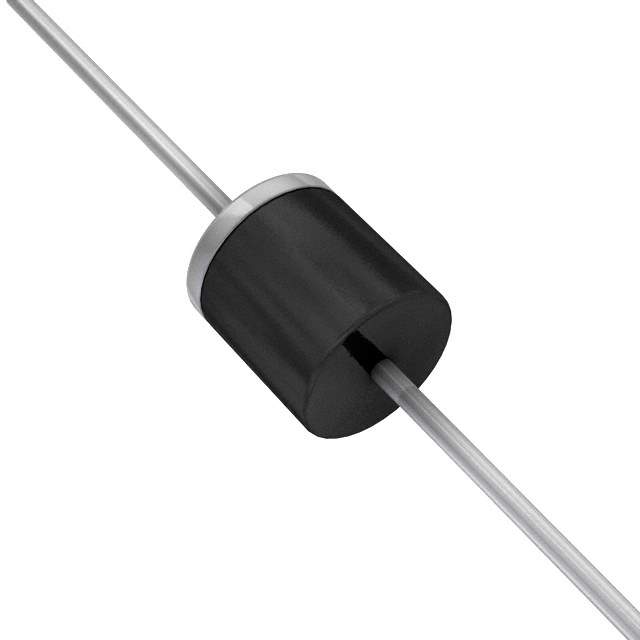

15SQ050 Real Image
Same model may have multiple batches, images only for reference.

15SQ050

Part No 15SQ050
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 50V 15A R-6
Datasheet
15SQ050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 680mV @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500nA @ 50V
Mounting Through Hole
Case / Package R-6
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1001594-15SQ050
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 15SQ050 CAD Model

Description

The SMC Diode Solutions 1001594-15SQ050 is a through-hole Schottky diode with a reverse voltage of 50V and an average rectified current of 15A.

  • Reverse Voltage: 50V
  • Average Rectified Current: 15A
  • Forward Voltage: 680mV @ 15A
  • Reverse Leakage Current: 500nA @ 50V
  • Supply and Demand Status: Sufficient
  • Case/Package: R-6
  • Operating Temperature: -55°C to 150°C
