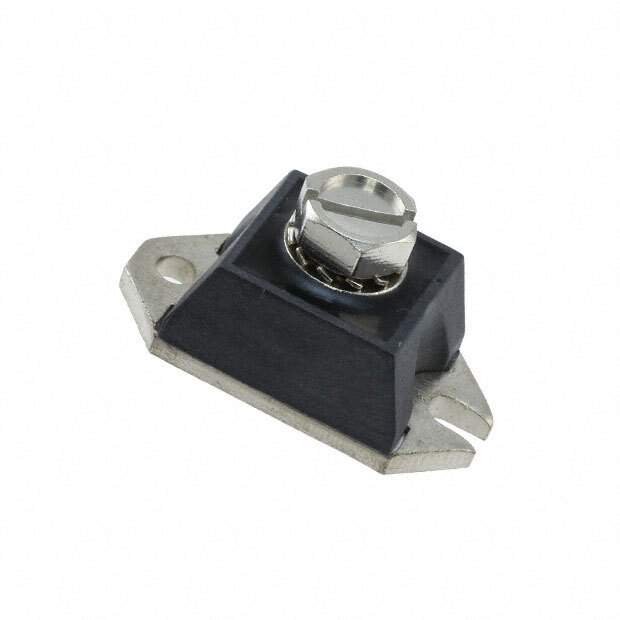

241NQ045-1 Real Image
Same model may have multiple batches, images only for reference.

241NQ045-1

Part No 241NQ045-1
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description PIV 45V IO 240A VF 0 69V PACKAGE
Datasheet
241NQ045-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Bulk
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) 240A
Voltage - Forward (Vf) (Max) @ If 690mV @ 240A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 20mA @ 45V
Capacitance @ Vr, F 10300pF @ 5V, 1MHz
Mounting Chassis Mount
Case / Package PRM1-1 (Half Pak Module)
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 143548-241NQ045-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 241NQ045-1 CAD Model

Description

Overview

Designed for efficiency and reliability, the 241NQ045-1 is a powerhouse component that delivers exceptional performance under pressure.

Features and Benefits

  • Enhanced Reliability: Built to maintain functionality over extended periods and under stress.
  • Superior Efficiency: Minimizes energy use while maximizing output.
  • Environmentally Friendly: Complies with the latest eco-standards.

Applications

  • Power Systems
  • Industrial Equipment
  • Scientific Instruments

The 241NQ045-1 is a staple in the industry, favored for its high reliability and performance standards.
