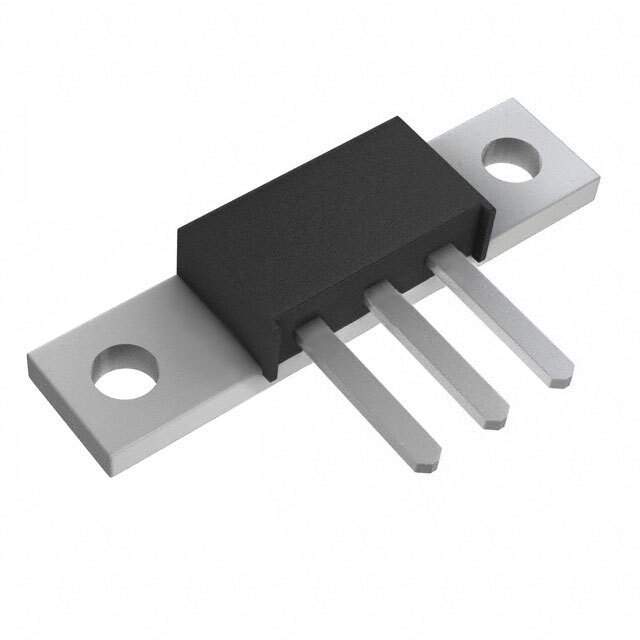

62CNQ030 Real Image
Same model may have multiple batches, images only for reference.

62CNQ030

Part No 62CNQ030
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 30V 30A PRM3  /  Diode Array 1 Pair Common Cathode Schottky 30 V 30A Through Hole PRM3
Datasheet
62CNQ030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr SMC Diode Solutions
Package Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 530 mV @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 mA @ 30 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case PRM3
Supplier Device Package PRM3
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 62CNQ030SMC
Standard Package 48
Win Source Part Number 1039547-62CNQ030
Ultra Librarian 3D Model Ultra Librarian 62CNQ030 CAD Model

Description

The SMC Diode Solutions 1039547-62CNQ030 is a through-hole, common cathode rectifier diode.

  • Product Name: SMC Diode Solutions 1039547-62CNQ030
  • Mounting Type: Through-Hole
  • Configuration: Common Cathode
  • Maximum Reverse Voltage (Vr): 30V
  • Forward Voltage (Vf): 530 mV @ 30 A
  • Maximum Reverse Leakage Current: 5 mA @ 30 V
  • Average Rectified Current: 30A per diode
  • Application: Fast Recovery
