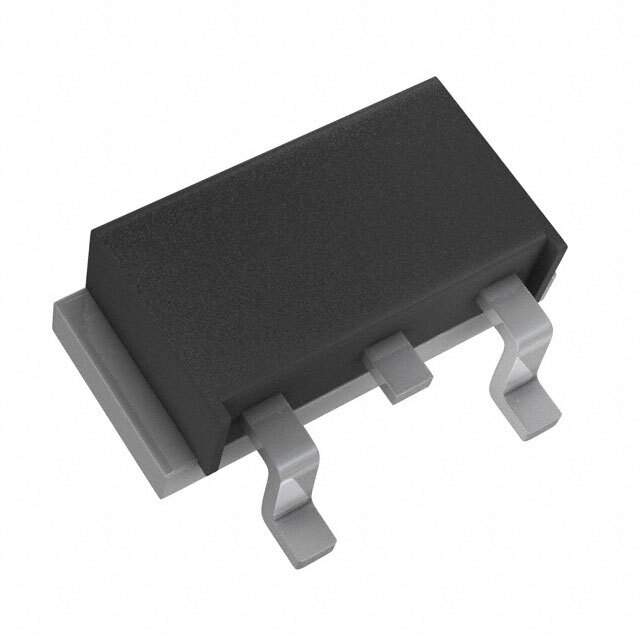

83CNQ100SL Real Image
Same model may have multiple batches, images only for reference.

83CNQ100SL

Part No 83CNQ100SL
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 100V 40A PRM2-SL
Datasheet
83CNQ100SL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 1V @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1.5mA @ 100V
Operating Temperature - Junction -55°C to 175°C
Mounting SMD (SMT)
Case / Package PRM2-SL
Win Source Part Number 198317-83CNQ100SL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 83CNQ100SL CAD Model

Description

83CNQ100SL

The 83CNQ100SL Schottky rectifier offers robust performance and low power loss due to its low forward voltage drop. It is well-suited for high-frequency applications with stringent efficiency requirements.

  • Features and Benefits:
    • Ultra-low forward voltage drop reduces heat generation
    • High-frequency operation
    • Durable construction for long-term reliability
  • Applications/Projects:
    • High-efficiency power supply units
    • Inverters and solar power systems
    • LED lighting systems
  • Additional Details:
    • Reverse Voltage: 100V
    • Forward Current: 100A
    • Package: TO-247AC
