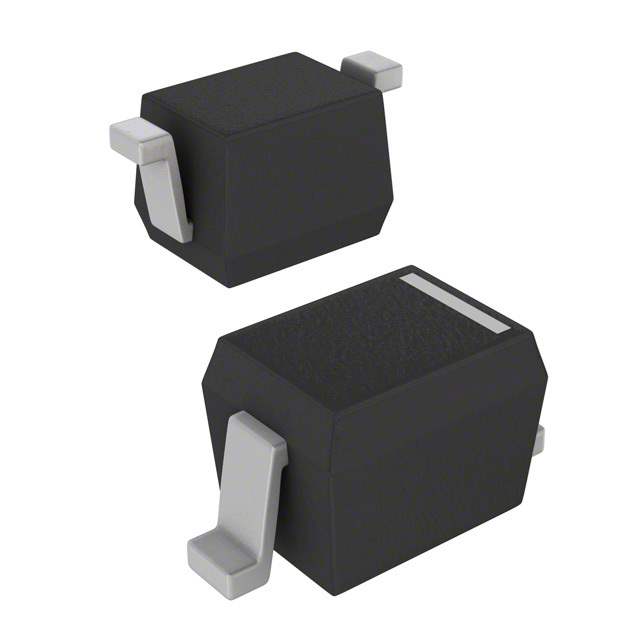

BAT54WS Real Image BAT54WS Real Image1 BAT54WS Real Image2
Same model may have multiple batches, images only for reference.
BAT54WS Real Image BAT54WS Real Image1 BAT54WS Real Image2
BAT54WS Real Image BAT54WS Real Image1 BAT54WS Real Image2
Same model may have multiple batches, images only for reference.

BAT54WS

Part No BAT54WS
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 100MA SOD323
Datasheet
BAT54WS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number BAT54
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568908-BAT54WS
Ultra Librarian 3D Model Ultra Librarian BAT54WS CAD Model

Description

The 568908-BAT54WS is a small signal Schottky diode designed for rectification purposes.

  • Maximum Reverse Voltage: 30V
  • Forward Voltage: 1V @ 100mA
  • Package Type: Surface mount
  • Case: SC-76, SOD-323
  • Series: Single Diodes
  • Current Rating: 100mA
  • Manufacturer: SMC Diode Solutions
  • Status: Active
