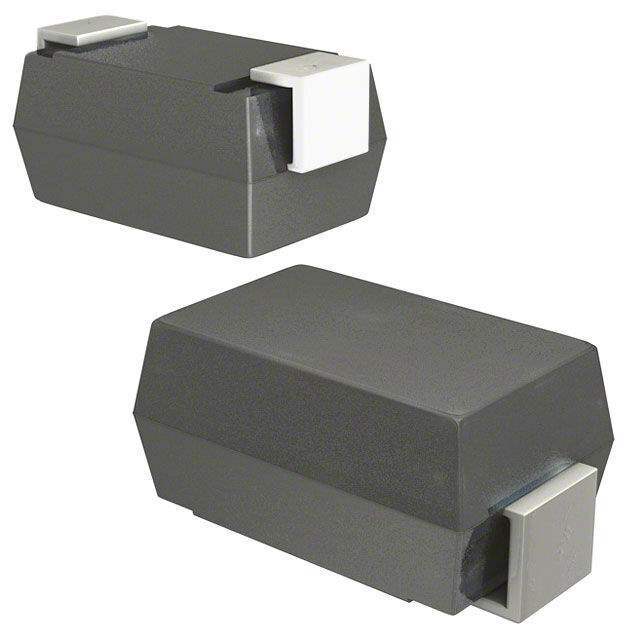

Same model may have multiple batches, images only for reference.
SS54-HF Comchip Technology
Same model may have multiple batches, images only for reference.

SS54-HF

Part No SS54-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 5A DO214AC
Datasheet
SS54-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products >Diodes >Rectifiers Single Diodes
Mfr Comchip Technology
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 40 V
Ultra Librarian 3D Model Ultra Librarian SS54-HF CAD Model

Description

  • Metal silicon junction, majority carrier conduction.
  • For surface mounted applications.
  • Low power loss, high efficiency.
  • High forward surge current capability.
  • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
