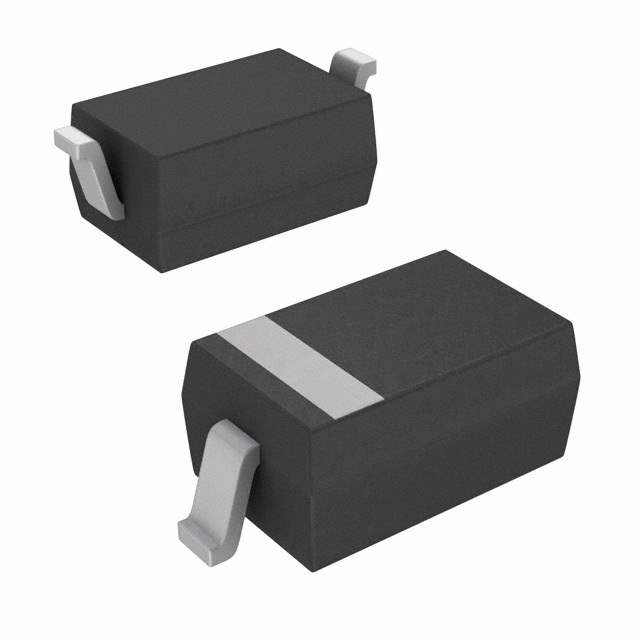

BAV16W Real Image
Same model may have multiple batches, images only for reference.

BAV16W

Part No BAV16W
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 75V 150MA SOD123 / Diode 75 V 150mA Surface Mount SOD-123
Datasheet
BAV16W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 75 V
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Max) @ If 855 mV @ 10 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 6 ns
Current - Reverse Leakage @ Vr 1 µA @ 75 V
Capacitance @ Vr, F 2pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123
Supplier Device Package SOD-123
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number BAV16
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 568974-BAV16W
Ultra Librarian 3D Model Ultra Librarian BAV16W CAD Model

Description

The BAV16W is a small signal rectifier diode that is commonly used in electronic circuits.

  • Maximum DC Reverse Voltage: 75V
  • Average Rectified Current: 150mA
  • Forward Voltage @ 10mA: 855mV
  • Reverse Recovery Time: 6ns
  • Reverse Leakage Current: 1μA @ 75V
  • Capacitance: 2pF @ 0V and 1MHz
  • Operating Temperature Range: -65°C to 150°C
  • Mounting Type: Surface mountable
  • Package: SOD-123
  • Status: Active product from SMC Diode Solutions and is commonly used in various electronic circuits.
