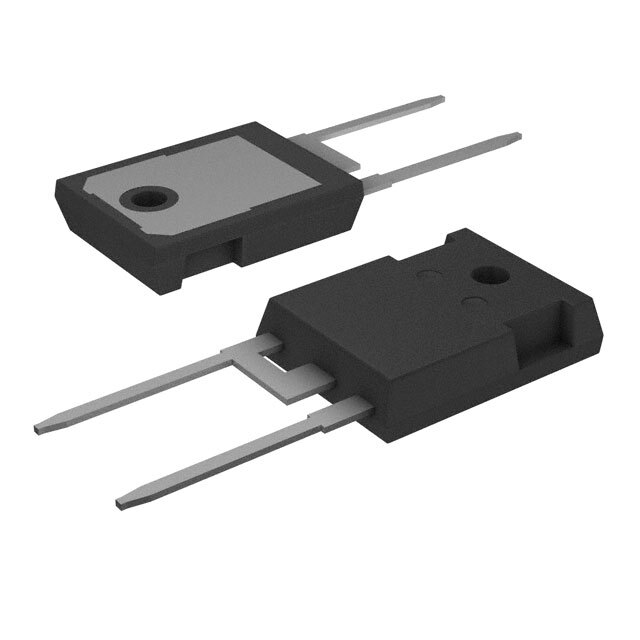

Same model may have multiple batches, images only for reference.
SDUR60Q60W SMC Diode Solutions
Same model may have multiple batches, images only for reference.

SDUR60Q60W

Part No SDUR60Q60W
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 60A TO247AC
Datasheet
SDUR60Q60W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Series -
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 2.4 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 40 ns
Current - Reverse Leakage @ Vr 25 µA @ 600 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AC
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number SDUR60
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366717-SDUR60Q60W
Ultra Librarian 3D Model Ultra Librarian SDUR60Q60W CAD Model

Description

The SMC Diode Solutions 1366717-SDUR60Q60W is a single diode rectifier from SMC Diode Solutions.

  • Mounting Type: Through Hole
  • Series: SDUR60
  • Maximum Reverse Voltage: 600V
  • Average Rectified Current: 60A
  • Maximum Forward Voltage: 2.4V @ 60A
  • Recovery Speed: Fast, less than 500ns
  • Reverse Recovery Time: 40ns
  • Reverse Leakage Current: 25µA @ 600V
  • Operating Temperature: -55°C to 175°C
  • Package: TO-247-2
  • Suitable For: Various applications in the electronics industry
