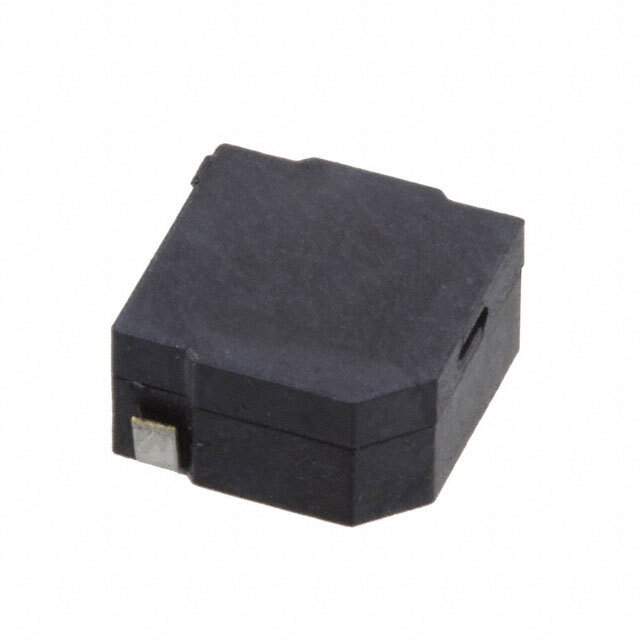

ST-0503-3 Real Image
Same model may have multiple batches, images only for reference.

ST-0503-3

Part No ST-0503-3
Manufacturer Soberton Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO MAGNETIC XDCR 2-4V SMD
Datasheet
ST-0503-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Estimated Pruduction Lead Time 10 Weeks
Features Buzzers Transducer, Externally Driven Magnetic 3 V 110mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder Pads
Manufacturer Soberton Inc.
Series ST
Package Reel - TR
Operating Temperature Range -20°C ~ 60°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Other Part Number 433-1108-6, 433-1108-1, 433-1108-2
Quantity per package 2500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 897794-ST-0503-3
Ultra Librarian 3D Model Ultra Librarian ST-0503-3 CAD Model

Description

The ST-0503-3 buzzer transducer from Soberton Inc. is an externally driven magnetic component with a sound level of 75dB @ 3V, 10cm.

  • Sound Level: 75dB @ 3V, 10cm
  • Frequency: 4kHz
  • Voltage Rating: 3V
  • Current Rating: 110mA
  • Series: ST
  • Mounting Type: Surface Mount
  • Package: Reel - TR
  • Quantity per Package: 2500
  • Operating Temperature: -20°C to 60°C
  • ECCN: EAR99
  • HTSUS: 8531.80.9041
