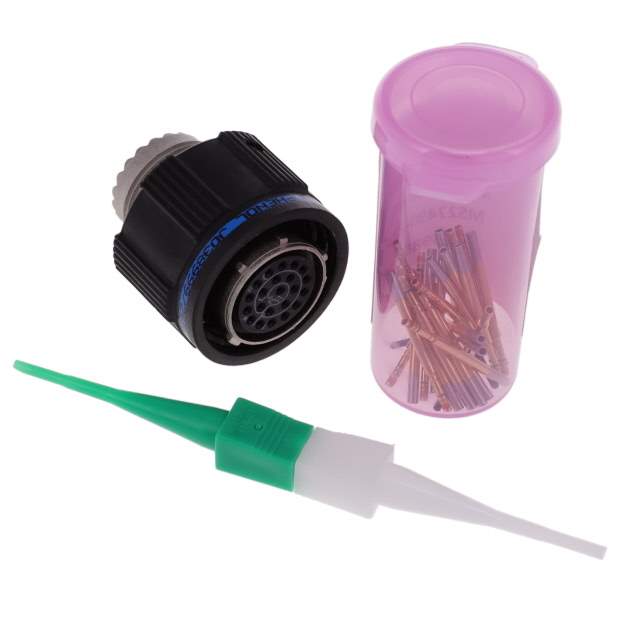

D38999/26MC35SN Real Image
Same model may have multiple batches, images only for reference.

D38999/26MC35SN

Part No D38999/26MC35SN
Manufacturer Souriau-Sunbank by Eaton
Catalog Circular Connectors
Description CONN PLUG FMALE 22POS GOLD CRIMP / 22 Position Circular Connector Plug, Female Sockets Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Souriau-Sunbank by Eaton
Series Military, MIL-DTL-38999 Series III
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 22
Shell Size - Insert 13-35
Shell Size, MIL C
Mounting Type Free Hanging (In-Line)
Termination Crimp
Fastening Type Threaded
Orientation N (Normal)
Primary Material Composite
Shell Material Composite
Shell Finish Nickel
Contact Finish - Mating Gold
Ingress Protection IP67 - Dust Tight, Waterproof
Features Coupling Nut
Shielding Shielded
Current Rating (Amps) 5A
Temperature Range - Operating -65°C ~ 200°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Insert Material Thermoplastic
Applications Aviation, Marine, Military
Base Product Number D38999/26MC
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names SD38999/26MC35SN
Standard Package 1
Win Source Part Number 1031034-D38999/26MC35SN
Ultra Librarian 3D Model Ultra Librarian D38999/26MC35SN CAD Model

Description

The D38999/26MC35SN is a circular connector manufactured by Souriau-Sunbank by Eaton.

  • Series: Military, MIL-DTL-38999 Series III
  • Positions: 22
  • Connector Type: plug, female sockets
  • Termination: crimp
  • Application: aviation, marine, and military
  • Packaging: bulk
  • Contact Material: copper alloy
  • Ingress Protection: IP67 - dust tight, waterproof
  • Shielding: shielded
  • Temperature Range: -65°C to 200°C
  • HTSUS: 8536.69.4020
  • RoHS Compliant: No
