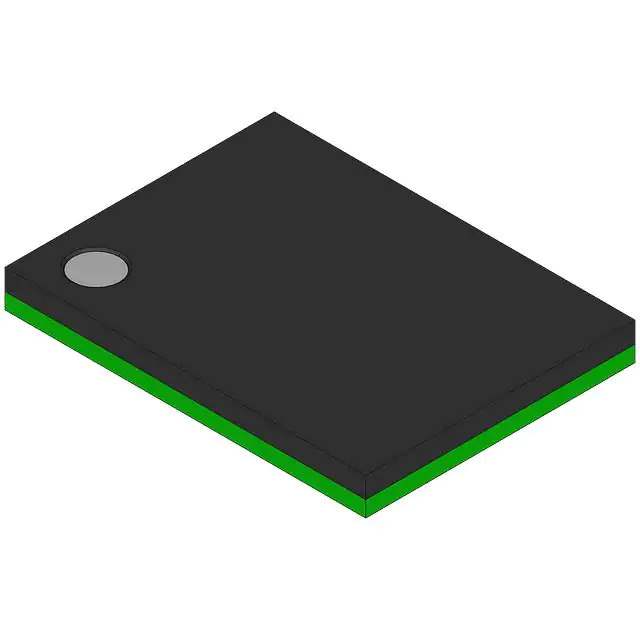

The S29AL008J70BFA023 is an 8 Mbit (1MB) parallel Flash memory device manufactured by Spansion, now Cypress Semiconductor (Infineon). It's designed for applications requiring non-volatile storage of code or data, offering fast read access and reliable data retention. Commonly found in embedded systems, networking equipment, and industrial applications.

Applications

• Embedded Systems: Storage for firmware and configuration data.
• Networking Equipment: Boot code and configuration storage.
• Industrial Control Systems: Storage for program code and data logging.
• Consumer Electronics: Storage for application code and data.
• Medical Devices: Storage for software and patient data.

Features

• 8 Mbit (1MB) Density: Provides sufficient storage for code and data.
• Parallel Interface: Enables fast read and write access.
• 70 ns Access Time: Fast access time for quick data retrieval.
• Sector Erase: Allows for selective erasure of memory blocks.
• Program Suspend and Resume: Enables interruption and continuation of programming operations.
• Low Power Consumption: Reduces power consumption for energy-efficient operation.
• Reliable Data Retention: Ensures long-term data storage.
• CMOS Process Technology: High performance and low power.

Benefits

• Fast Performance: Quick read and write access for efficient operation.
• Reliable Data Storage: Ensures long-term data retention.
• Flexible Memory Management: Sector erase allows for selective memory updates.
• Low Power Consumption: Extends battery life in portable devices.
• Wide Operating Voltage: Operates over a wide voltage range for compatibility with various systems.

Additional Details

The S29AL008J70BFA023 features a parallel interface, which enables fast data transfer rates. The sector erase functionality allows for selective erasure of memory blocks, which simplifies memory management and reduces the time required for updates. The device operates over a wide voltage range, which makes it compatible with various systems. The low power consumption of the S29AL008J70BFA023 extends battery life in portable devices and reduces overall system power consumption. The fast access time ensures quick data retrieval, which is critical for performance-sensitive applications. The device is packaged in a standard TSOP package, facilitating ease of integration onto PCBs.
