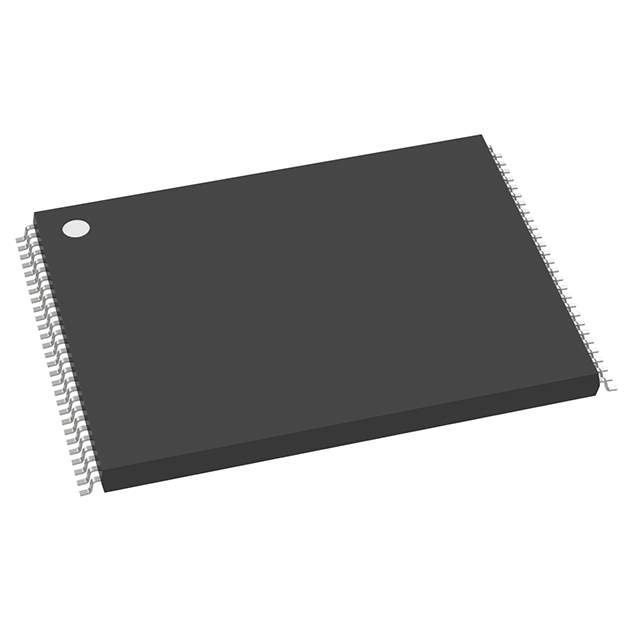

The S29GL256N90TFIR1 is a 256-Mbit NOR flash memory device manufactured by Spansion (now Cypress Semiconductor, and subsequently Infineon Technologies). It is designed to provide fast and reliable non-volatile storage for a wide range of embedded applications.

Applications

• Automotive electronics: Used in engine control units (ECUs), instrument clusters, and infotainment systems for storing firmware, calibration data, and map information.
• Industrial control systems: Employed in programmable logic controllers (PLCs), human-machine interfaces (HMIs), and other industrial automation equipment for storing control programs and configuration data.
• Networking equipment: Used in routers, switches, and other networking devices for storing boot code, operating system images, and configuration files.
• Medical devices: Found in diagnostic equipment, patient monitoring systems, and other medical devices for storing application code, patient data, and configuration settings.
• Aerospace applications: Used in avionics systems for storing flight control software, navigation data, and sensor readings.

Features

• Density: 256 Mbit (32 MB)
• Interface: Parallel NOR flash interface
• Supply Voltage: 3.0V
• Operating Temperature Range: -40°C to +85°C (Industrial Grade)
• Data Bus Width: x8 or x16 configurable
• Sector Architecture: Uniform sector architecture
• Erase and Program Suspend/Resume: Supports interruption and resumption of erase and program operations
• Security Features: Includes sector protection and password protection features
• Package: TFBGA (Thin Fine-Pitch Ball Grid Array)

Benefits

• Fast Read Access: NOR flash architecture provides fast random access read times, enabling quick boot-up and code execution.
• Reliable Data Storage: Non-volatile memory ensures data retention even when power is removed.
• Flexibility: Configurable data bus width (x8 or x16) allows adaptation to different system requirements.
• Ease of Integration: Parallel interface simplifies integration with various microcontrollers and processors.
• Robustness: Wide operating temperature range makes it suitable for harsh environments.
• Security: Built-in security features protect sensitive data from unauthorized access.

Additional Details

The S29GL256N90TFIR1 offers a parallel NOR flash interface for high-speed access. Its uniform sector architecture simplifies memory management and allows for flexible partitioning. The erase and program suspend/resume features provide efficient firmware updates and data logging without interrupting critical operations. Packaged in a TFBGA, it offers a compact footprint and excellent thermal performance. The industrial temperature range ensures reliable operation in harsh environments. Sector and password protection features enhance data security, safeguarding sensitive information from unauthorized access. It's designed for applications demanding high reliability and fast access.
