Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer SparkFun Electronics
Main Purpose Interface, Transceiver, RS-485
Utilized IC / Part SP3485
Supplied Contents Board(s)
Win Source Part Number 795253-BOB-10124
Popularity Medium
Supply and Demand Status Sufficient
Family Name BOB-10124
Introduction Date January 01, 2000
ECCN 5A992.c
Country of Origin United States of America
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian BOB-10124 CAD Model

Description

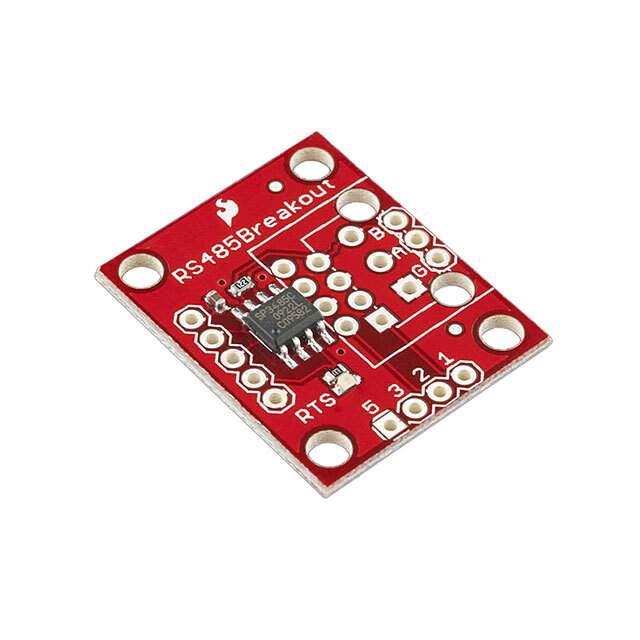

The BOB-10124 is a breakout board manufactured by SparkFun Electronics. It's designed to provide easy access to the pins of a surface-mount component, making it easier to prototype and experiment with without needing to solder directly to the tiny pins of the original chip.

Applications

  • Prototyping: Used to quickly prototype circuits using surface mount components on breadboards or perfboards.
  • Experimentation: Allows hobbyists and engineers to experiment with SMD components without advanced soldering equipment.
  • Educational purposes: Useful for teaching electronics and SMD component usage in classrooms and workshops.
  • Testing: Facilitates the testing and evaluation of SMD components in various circuits.
  • DIY projects: Enables the integration of SMD components into custom DIY electronics projects.

Features

  • Breakout design: Breaks out all the pins of a specific SMD component (likely SOIC package) to standard 0.1" spaced headers.
  • Clear Pin Labels: Clearly labeled pins for easy identification and connection.
  • Breadboard Compatibility: Designed to be easily inserted into breadboards for prototyping.
  • Compact Size: Small footprint minimizes board space usage.
  • High-Quality PCB: Constructed with durable, high-quality printed circuit board material.

Benefits

  • Simplified Prototyping: Makes prototyping with SMD components significantly easier and faster.
  • No Specialized Equipment Needed: Eliminates the need for specialized SMD soldering equipment for basic circuit building.
  • Reusable: Can be reused for multiple projects, saving time and resources.
  • Educational: Provides a hands-on learning experience with SMD components.
  • Reduced Risk of Damage: Minimizes the risk of damaging the SMD component during soldering.

The SparkFun BOB-10124 breakout board is a valuable tool for anyone working with surface mount components. It simplifies prototyping, experimentation, and educational activities by providing easy access to the component's pins. The board is designed for breadboard compatibility and features clear pin labels, making it easy to integrate into your projects.

Note: Without knowing the specific SMD component the BOB-10124 is designed for, a more detailed technical specification cannot be provided. The user should refer to the documentation for the specific component the breakout board is used with.
