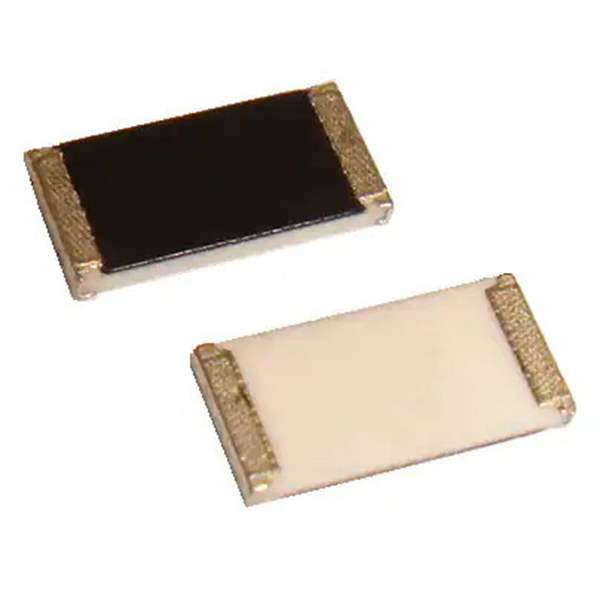

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRN
Package Tape & Reel
Product Status Active
Resistance 470 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.124" W (6.35mm x 3.15mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375452-CSRN2512FKR470
Ultra Librarian 3D Model Ultra Librarian CSRN2512FKR470 CAD Model

Description

The CSRN2512FKR470 is a chip resistor designed for automotive applications from Stackpole Electronics Inc.

  • Resistance: 470 mOhms
  • Power Rating: 2W
  • Series: CSRN
  • Technology: Thick Film
  • Tolerance: ±1%
  • Package Size: 2512 (6432 Metric)
  • Dimensions: 0.250" L x 0.124" W (6.35mm x 3.15mm)
  • Height: 0.028" (0.70mm)
  • Operating Temperature: -55°C to 155°C
  • AEC-Q200: Yes
  • Application: Current Sensing
  • Packaging: Tape and Reel
