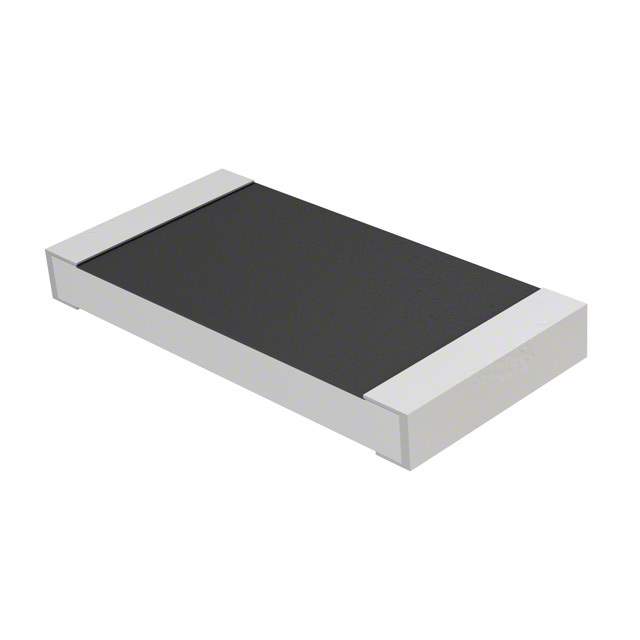

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RMCF
Package Tape & Reel (TR)
Resistance 80.6 Ohms
Tolerance ±1%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Ratings AEC-Q200
Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names RMC1/280.61%R,RMC1/280.6FR,RMC1/280.61%R-ND,RMC1/280.6FR-ND,RMC 1/2 80.6 1% R
Standard Package 4,000
Win Source Part Number 959292-RMCF2010FT80R6
Ultra Librarian 3D Model Ultra Librarian RMCF2010FT80R6 CAD Model

Description

The Stackpole Electronics Inc RMCF2010FT80R6 resistor is a chip resistor with a surface mount package.

  • Resistance: 80.6 Ohms
  • Power Rating: 0.75W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Automotive: AEC-Q200
  • Height: 0.028" (0.70mm)
  • Temperature Range: -55°C to 155°C
  • Packaging: Tape & Reel (TR)
  • Standard Package: 4,000
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8533.21.0030
