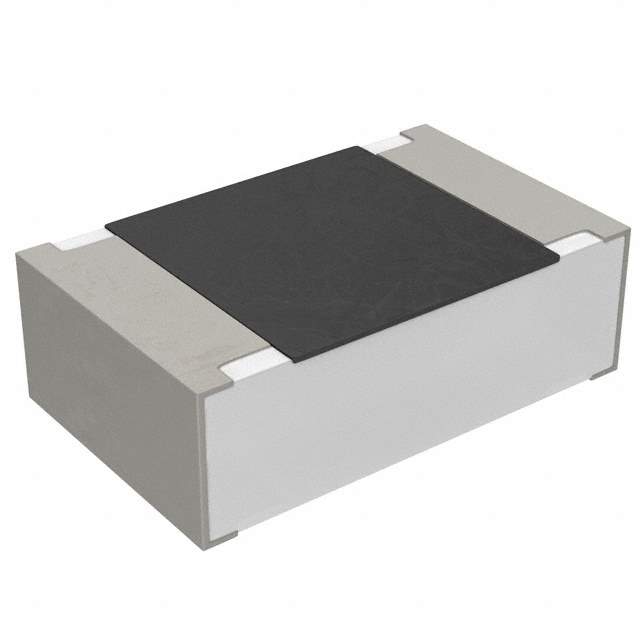

HVCB0805BDC5M00 Real Image
Same model may have multiple batches, images only for reference.

HVCB0805BDC5M00

Part No HVCB0805BDC5M00
Manufacturer Stackpole Electronics Inc.
Catalog Chip Resistor - Surface Mount
Description RES 5M OHM 0.1% 1/5W 0805 / 5 MOhms ±0.1% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) High Voltage, Moisture Resistant, Pulse Withstanding Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series HVC
Package Tape & Reel
Resistance 5 mOhms
Tolerance ±0.1%
Power (Watts) 0.2W, 1/5W
Composition Thick Film
Features High Voltage, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.050" W (2.01mm x 1.27mm)
Height - Seated (Max) 0.025" (0.64mm)
Number of Terminations 2
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1352279-HVCB0805BDC5M00
Ultra Librarian 3D Model Ultra Librarian HVCB0805BDC5M00 CAD Model

Description

The HVCB0805BDC5M00 is a chip resistor with a resistance of 5 mOhms.

  • Resistance: 5 mOhms
  • Technology: Thick Film
  • Tolerance: ±0.1%
  • Features: High Voltage, Moisture Resistant, Pulse Withstanding
  • Power (Watts): 0.2W
  • Package / Case: 0805 (2012 Metric)
  • Operating Temperature: -55°C ~ 150°C
  • Packaging: Tape & Reel (TR)
  • Standard Package: 500
